Redu, Belgium (REDU00BEL)

RESPONSIBLE FOR METADATA ESOC (European Space Agency)
RESPONSIBLE AGENCY ESOC (European Space Agency)
CURRENT STATION CONFIGURATION redu00bel_20230119.log
STATUS IN EPN included since 22-06-2003
LAST AVAILABLE DATA 21-09-2023
LAST RECEIVER SEPT POLARX5TR (19-01-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA SEPCHOKE_B3E6/NONE (29-10-2019 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY LPT, MUT, ROB, UPA
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 06-04-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 096/2020 N/A
BEV 003/2020 N/A
BKGI 096/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+IRNSS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 258/2023 78.57%
BEV 264/2023 100%
BKGI 264/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 097/2020 (A) N/A 0%
BKGI 097/2020 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 265/2023 (O) 100% 95.83%
BKGI 265/2023 (O) 100% 96.43%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station REDU00BEL
Last ETRF2000 position valid from 303/2019 to 316/2022
expressed at epoch 001/2010
X = 4091423.615 m Vx = 0.0001 m/y
Y = 368380.355 m Vy = -0.0004 m/y
Z = 4863179.577 m Vz = -0.0003 m/y

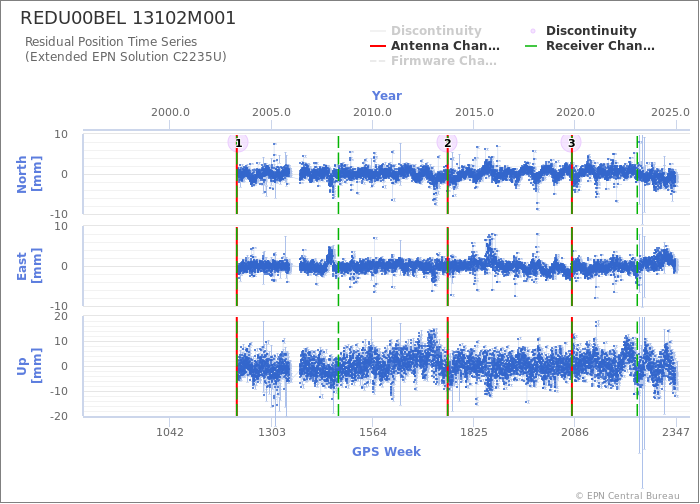

Position time series

Position time series

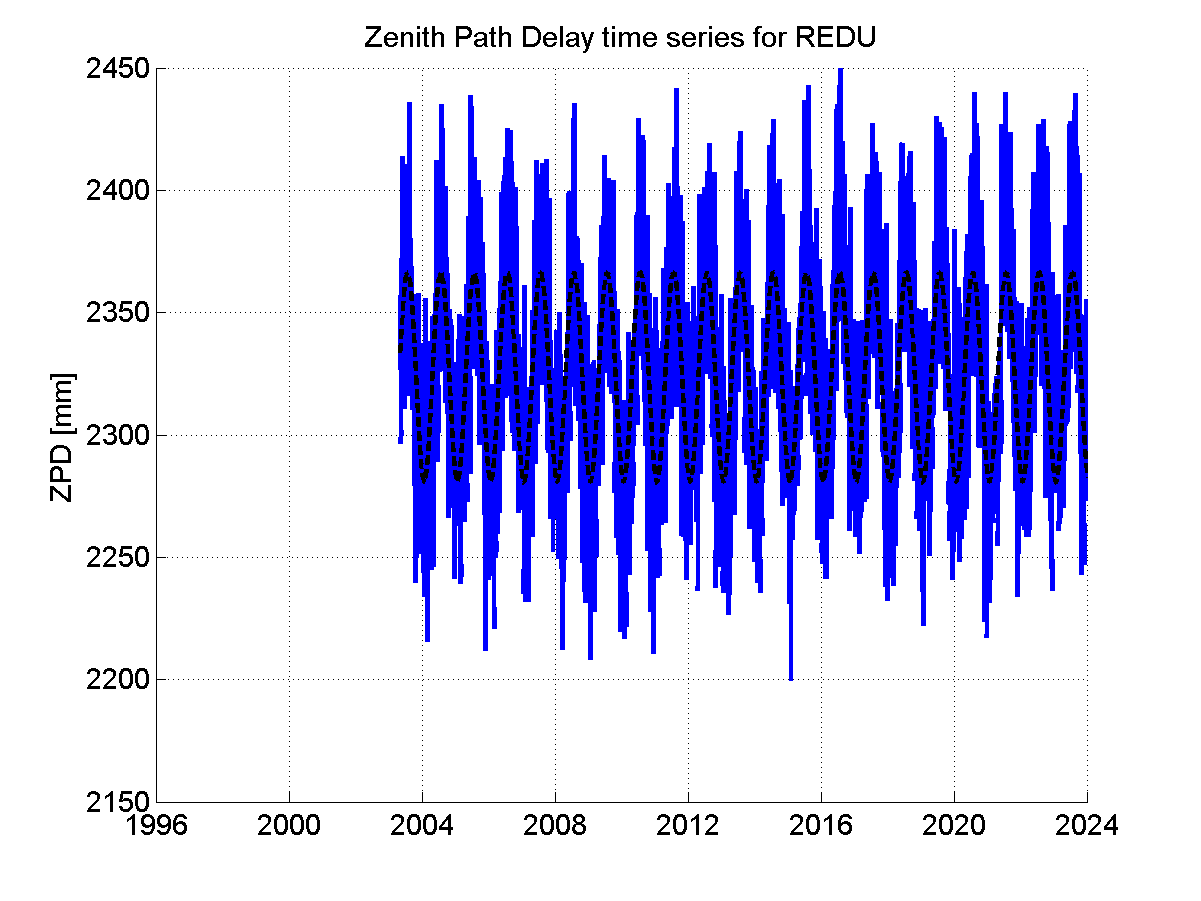

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

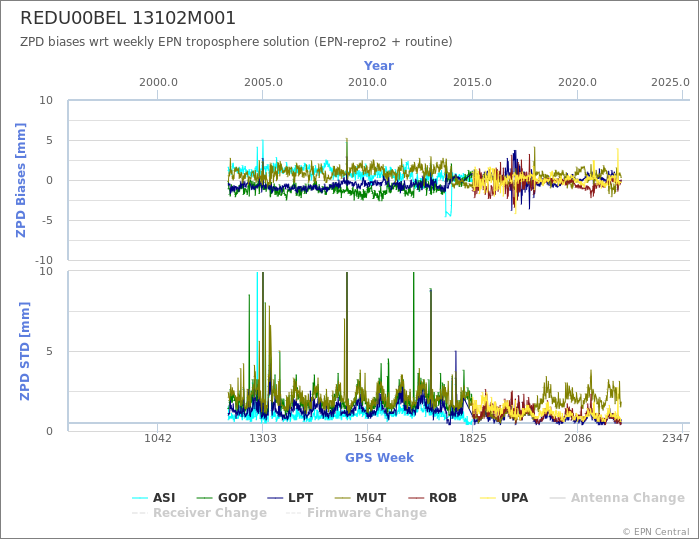

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

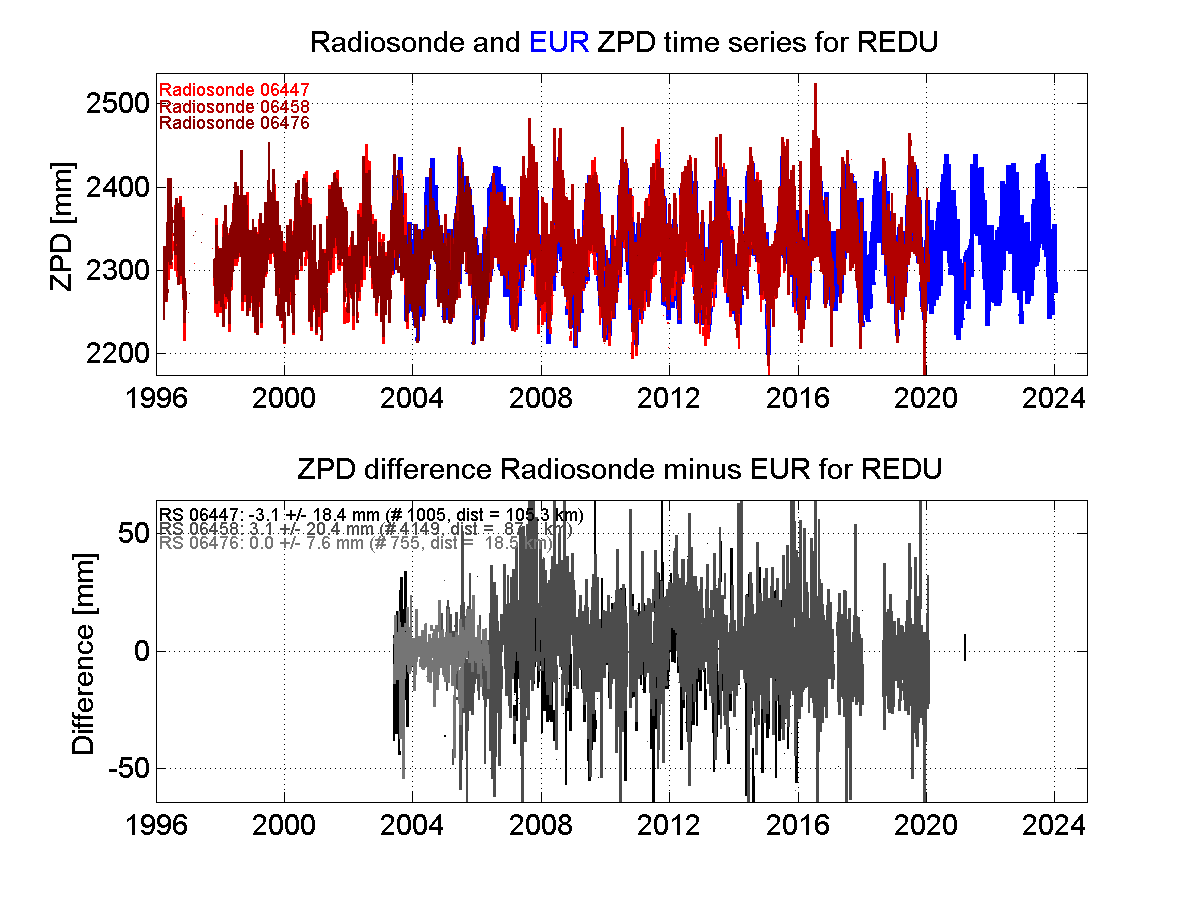

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
