izmir, Turkey (IZMI00TUR)

RESPONSIBLE FOR METADATA GCM (General Directorate of Mapping)
RESPONSIBLE AGENCY GCM (General Directorate of Mapping)
CURRENT STATION CONFIGURATION izmi00tur_20221117.log
STATUS IN EPN included since 17-02-2019
LAST AVAILABLE DATA 22-09-2023
LAST RECEIVER TRIMBLE ALLOY (19-10-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA TRM115000.00/NONE (19-10-2022 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, BEV, BKG, GFZ
INCLUSION IN OTHER NETWORK(S) IGS

The RINEX 2 data are no more submitted to the EPN data centres since 16-02-2022.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 046/2022 N/A
BEV 046/2022 N/A
BKGI 046/2022 N/A
RINEX V3.02 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 258/2023 75%
BEV 265/2023 92.86%
BKGI 260/2023 57.14%
Hourly
Data centres Online Last data Availability Latency
BEV 046/2022 (N) N/A 0%
BKGI 046/2022 (N) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 265/2023 (M) 91.67% 8.33%
BKGI 265/2023 (M) 84.52% 28.57%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station IZMI00TUR
Last ETRF2000 position valid from 306/2020 to 316/2022
expressed at epoch 237/2021
X = 4456584.934 m
Y = 2278765.020 m
Z = 3939930.472 m

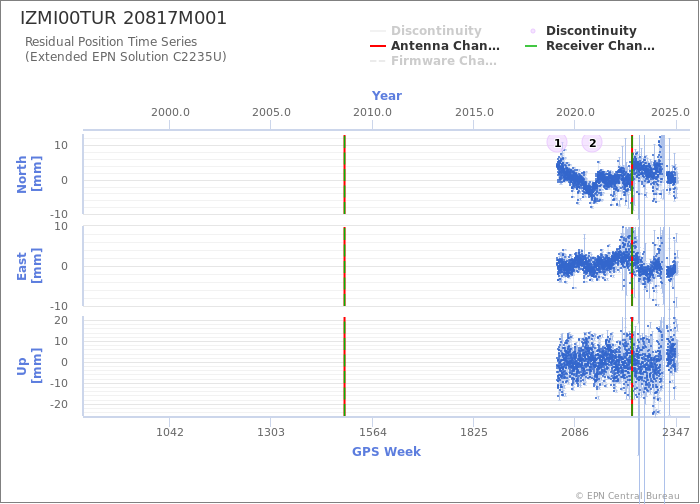

Position time series

Position time series

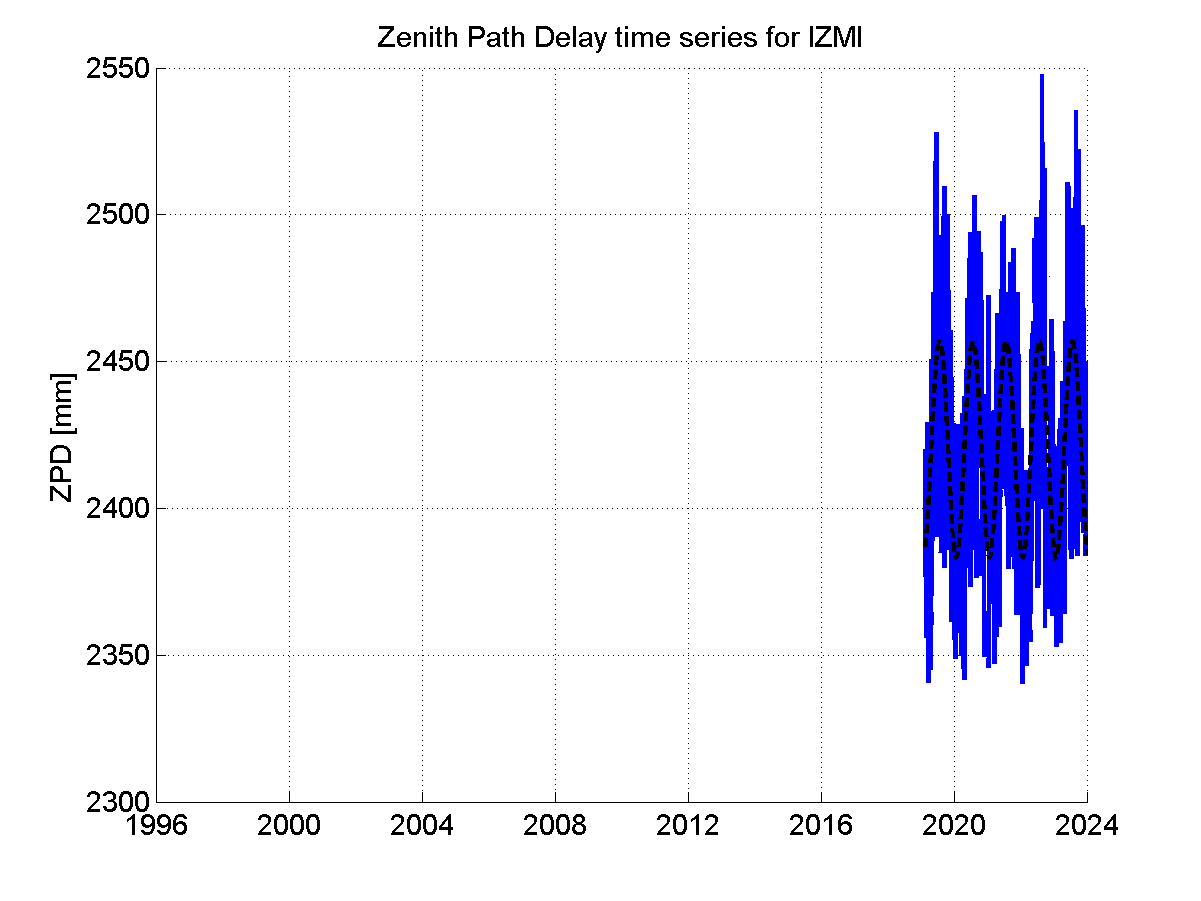

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

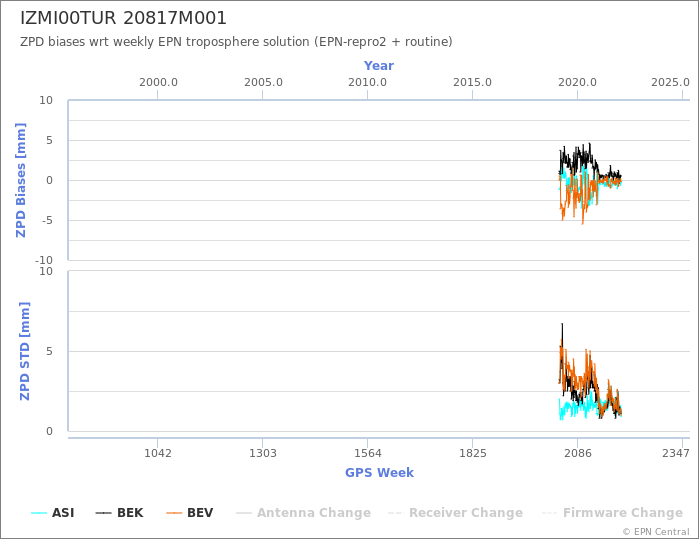

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

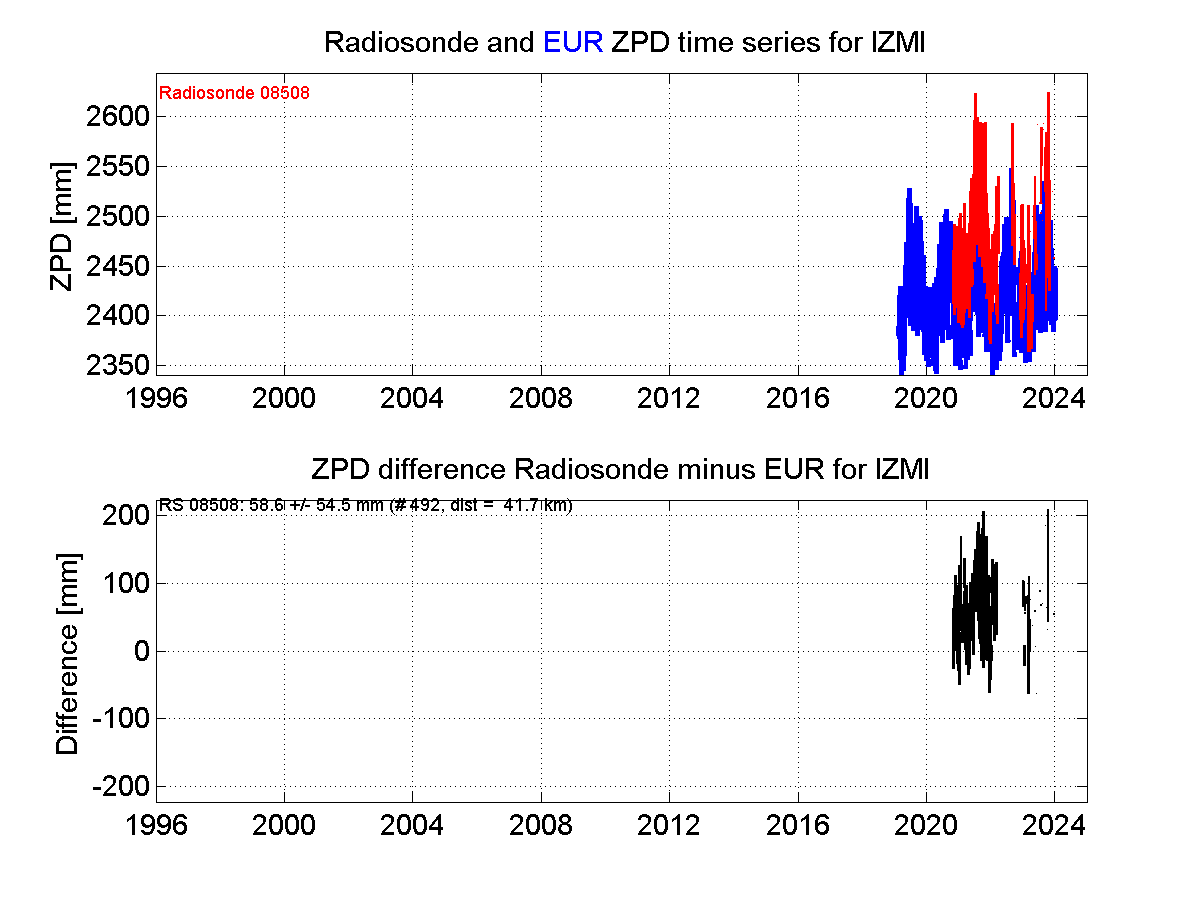

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
