EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE FOR METADATA	OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
RESPONSIBLE AGENCY	OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
CURRENT STATION CONFIGURATION	tll100irl_20230331.log
STATUS IN EPN	included since 17-02-2019
LAST AVAILABLE DATA	30-09-2023
LAST RECEIVER	LEICA GR30 (13-12-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR10/NONE (27-10-2017 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	GFZ, IGE, ROB, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 15-04-2020.

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

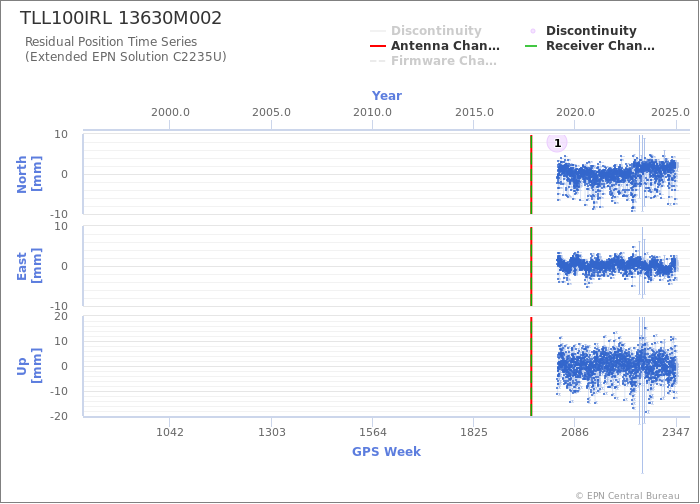

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station TLL100IRL
Last ETRF2000 position valid from 048/2019 to 316/2022 expressed at epoch 001/2010
X = 3797283.477 m	Vx = -0.0004 m/y
Y = -423484.685 m	Vy = -0.0000 m/y
Z = 5090128.455 m	Vz = -0.0004 m/y
