EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE FOR METADATA	FGI (National Land Survey of Finland)
RESPONSIBLE AGENCY	FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION	savu00fin_20221103.log
STATUS IN EPN	included since 28-10-2018
LAST AVAILABLE DATA	21-09-2023
LAST RECEIVER	JAVAD TRE_3 DELTA (03-11-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	JAVRINGANT_DM/SCIS (29-09-2014 to now)
INDIVIDUAL CALIBRATION(S)	JAVRINGANT_DM/SCIS (SN: 00722) from 2013-10-18 to 2014-07-10, from 2014-09-29 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2013-09-12)
DATA ROUTINELY ANALYSED BY	BEV, GFZ, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

SAVU00FIN0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2023/09/22 00:22 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)
2023/09/22 00:22 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SSXQJF426L2R0T4F2MW) wrt site log (02814)
2023/09/22 00:22 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1543 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2023/09/21 22:42 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SSXQJF426L2R0T4F2MW) wrt site log (02814)
2023/09/21 22:42 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1543 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2023/09/22 03:35 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SSXQJF426L2R0T4F2MW) wrt site log (02814)
2023/09/22 03:35 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1543 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

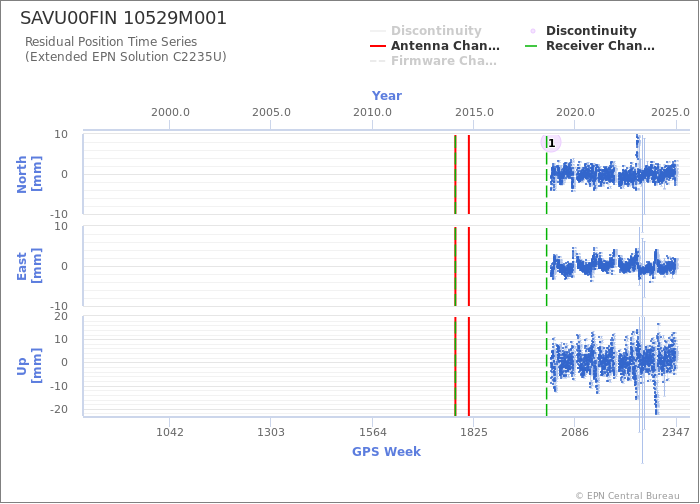

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station SAVU00FIN
Last ETRF2000 position valid from 301/2018 to 316/2022 expressed at epoch 001/2010
X = 2100286.775 m	Vx = 0.0012 m/y
Y = 1162091.458 m	Vy = 0.0012 m/y
Z = 5889701.119 m	Vz = 0.0046 m/y
