EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BEV (Federal Office of Metrology and Surveying Austria)
RESPONSIBLE FOR METADATA	BEV (Federal Office of Metrology and Surveying Austria)
CURRENT STATION CONFIGURATION	pfa300aut_20231212.log
STATUS IN EPN	included since 17-03-2019
LAST AVAILABLE DATA	19-04-2024
LAST RECEIVER	LEICA GR30 (12-12-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR25.R3/LEIT (12-11-2015 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, BEV, BKG, LPT, SGO
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 31-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

PFA300AUT0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/20 00:00 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0500 m) wrt site log (0.21096 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/19 22:12 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0500 m) wrt site log (0.21096 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/20 03:20 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0500 m) wrt site log (0.21096 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

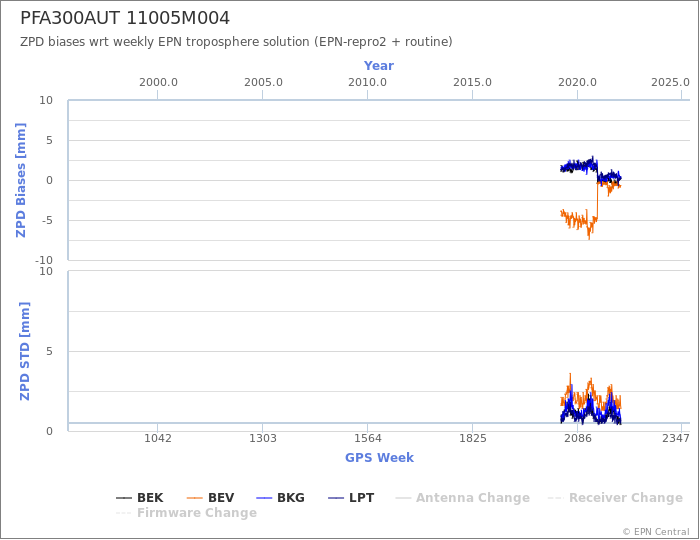

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

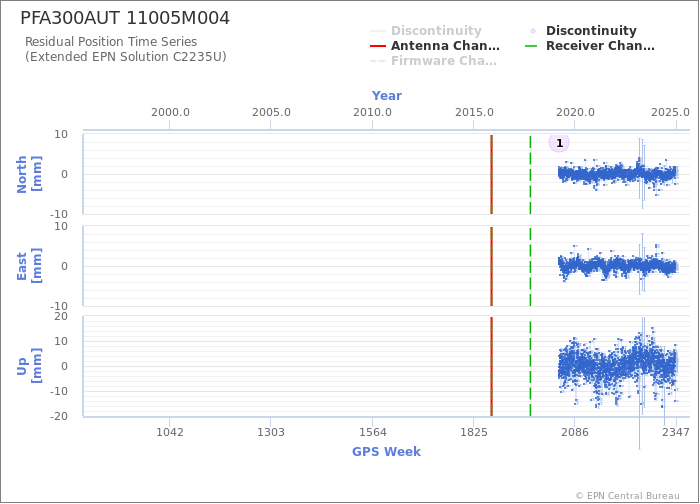

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station PFA300AUT
Last ETRF2000 position valid from 076/2019 to 316/2022 expressed at epoch 001/2010
X = 4253561.382 m	Vx = -0.0003 m/y
Y = 733544.834 m	Vy = -0.0001 m/y
Z = 4681451.826 m	Vz = 0.0001 m/y
