EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	CISAS (Università di Padova)
RESPONSIBLE FOR METADATA	CISAS (Università di Padova)
CURRENT STATION CONFIGURATION	pado00ita_20220902.log
STATUS IN EPN	included since 02-12-2001
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	STONEX SC2200 (11-03-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA	STXSA1500/STXG (23-11-2020 to now)
INDIVIDUAL CALIBRATION(S)	STXSA1500/STXG (SN: 18119000473) from 2020-11-23 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2019-02-11)
DATA ROUTINELY ANALYSED BY	BEK, BEV, GFZ, LPT, RGA, UPA
INCLUSION IN OTHER NETWORK(S)	IGS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 09-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

PADO00ITA0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7) : stream temporarily unavailable

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/18 21:47 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 21:47 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.1229 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/19 02:51 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/19 02:51 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+QZSS)
2024/04/19 02:51 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.1229 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

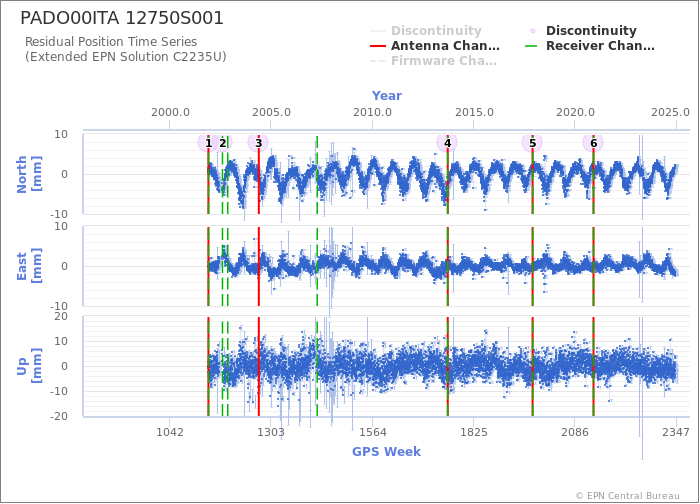

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station PADO00ITA
Last ETRF2000 position valid from 329/2020 to 316/2022 expressed at epoch 001/2010
X = 4388882.299 m	Vx = -0.0020 m/y
Y = 924567.210 m	Vy = -0.0004 m/y
Z = 4519588.507 m	Vz = -0.0003 m/y
