Ny Alesund, Norway (NYA200NOR)

RESPONSIBLE FOR METADATA GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
RESPONSIBLE AGENCY GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
CURRENT STATION CONFIGURATION nya200nor_20230216.log
STATUS IN EPN included since 30-09-2018
LAST AVAILABLE DATA 21-09-2023
LAST RECEIVER SEPT POLARX5 (16-02-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA JAVRINGANT_G5T/NONE (08-08-2019 to now)
INDIVIDUAL CALIBRATION(S)
  • JAVRINGANT_G5T/NONE (SN: 3231) from 2019-08-08 to now :
  • JAV_RINGANT_G3T/NONE (SN: 342) from 2011-07-25 to 2019-08-08 :
DATA ROUTINELY ANALYSED BY BEV, GFZ, NKG, WUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 09-01-2020.

RINEX V2.11 - GPS+GLO+GAL
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 008/2020 N/A
BEV 003/2020 N/A
BKGI 008/2020 N/A
RINEX V3.05 - GPS+GLO+GAL+BDS+QZSS+IRNSS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 258/2023 78.57%
BEV 264/2023 100%
BKGI 264/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 009/2020 (A) N/A 0%
BKGI 009/2020 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 265/2023 (O) 99.4% 95.24%
BKGI 265/2023 (O) 99.4% 95.24%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

NYA200NOR0 :

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2023/09/21 21:11 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.5508 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2023/09/22 02:06 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.5508 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station NYA200NOR
Last ETRF2000 position valid from 221/2019 to 316/2022
expressed at epoch 001/2010
X = 1202379.813 m Vx = 0.0015 m/y
Y = 252474.506 m Vy = 0.0005 m/y
Z = 6237786.356 m Vz = 0.0069 m/y

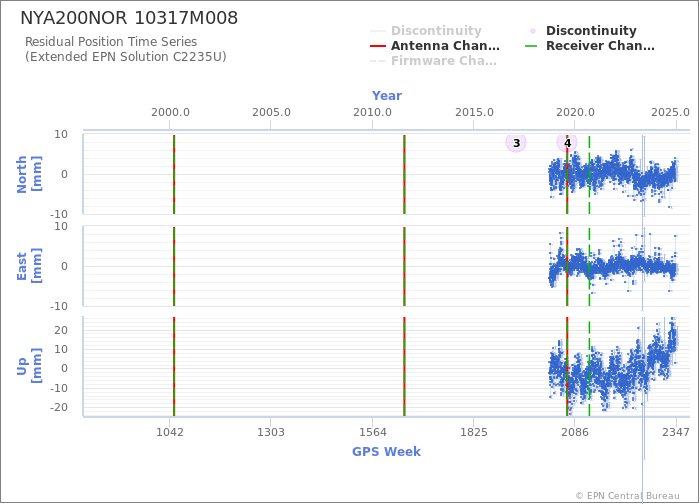

Position time series

Position time series

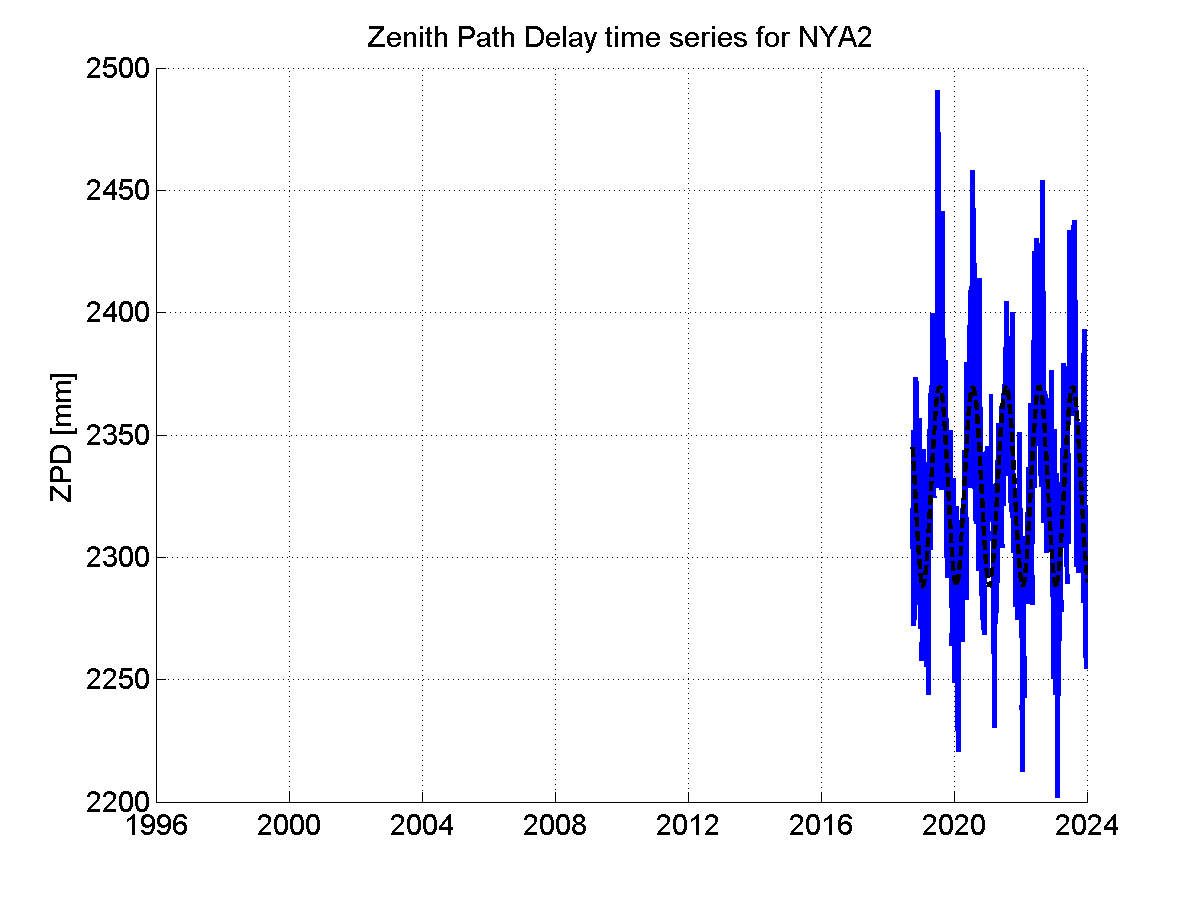

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

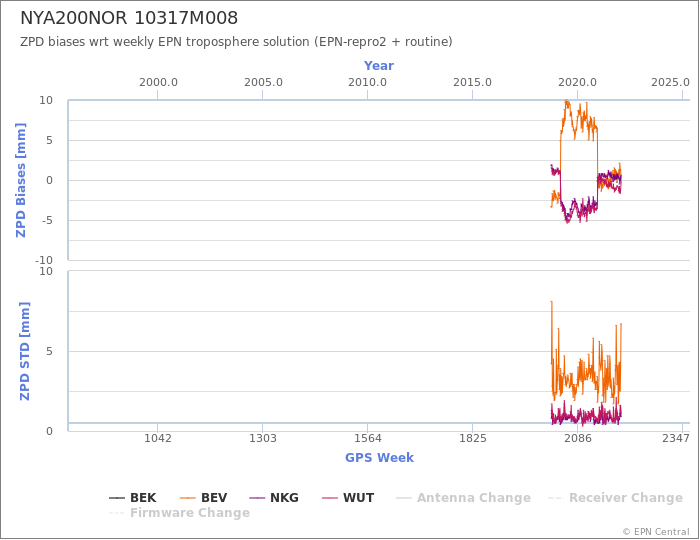

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

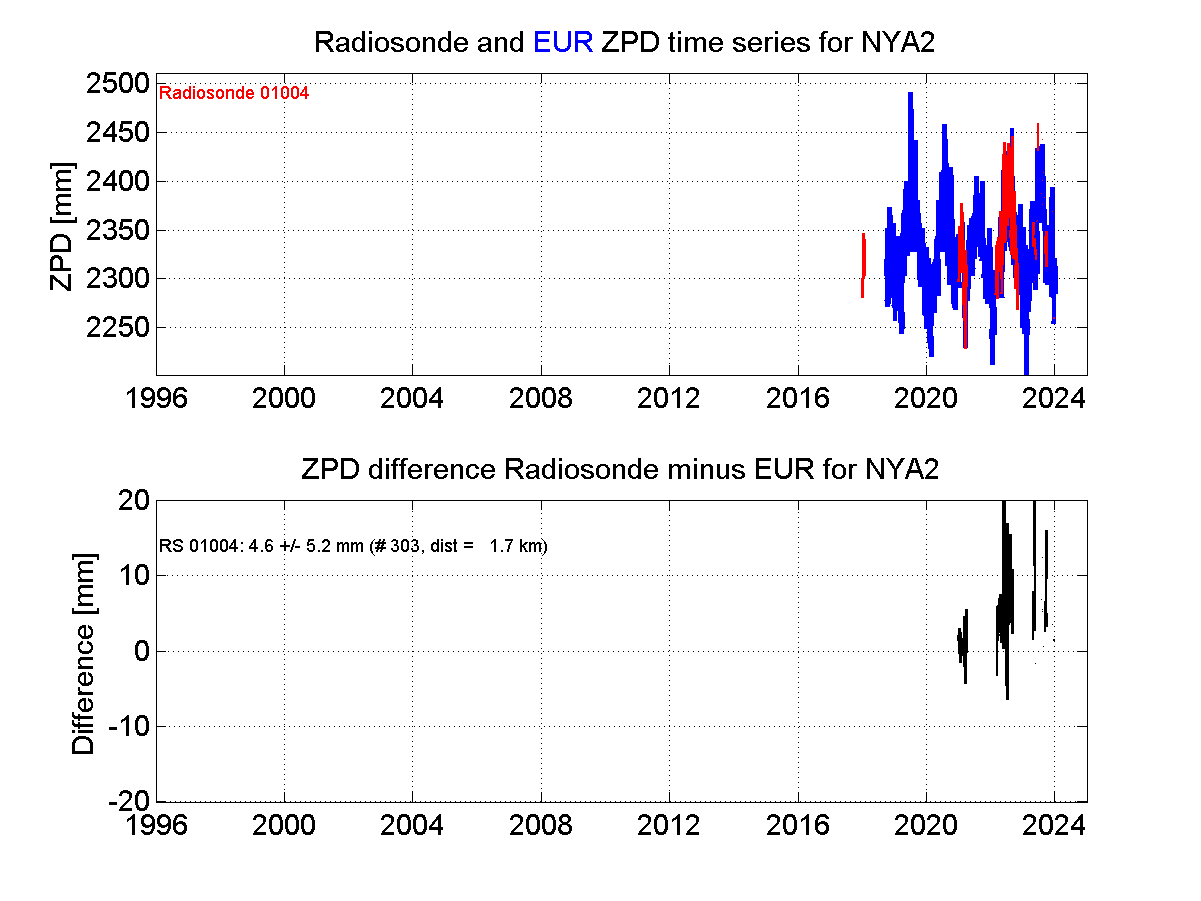

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
