Linz, Austria (LINZ00AUT)

RESPONSIBLE FOR METADATA LINZAG (Managementservice Linz GmbH)
RESPONSIBLE AGENCY LINZAG (Managementservice Linz GmbH)
CURRENT STATION CONFIGURATION linz00aut_20230626.log
STATUS IN EPN included since 19-08-2001
LAST AVAILABLE DATA 23-09-2023
LAST RECEIVER TRIMBLE ALLOY (19-06-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA TRM59900.00/SCIS (19-06-2023 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, LPT, MUT, SUT, UPA

The RINEX 2 data are no more submitted to the EPN data centres since 08-03-2021.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 065/2021 N/A
BEV 065/2021 N/A
BKGE 062/2021 N/A
RINEX V3.03 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 260/2023 78.57%
BEV 266/2023 96.43%
BKGE 266/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 067/2021 (A) N/A 0%
BKGE 062/2021 (G) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 267/2023 (M) 100% 48.21%
BKGE 267/2023 (M) 100% 76.79%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station LINZ00AUT
Last ETRF2000 position valid from 155/2017 to 316/2022
expressed at epoch 001/2010
X = 4118898.943 m Vx = -0.0001 m/y
Y = 1048597.127 m Vy = -0.0001 m/y
Z = 4740105.688 m Vz = -0.0002 m/y

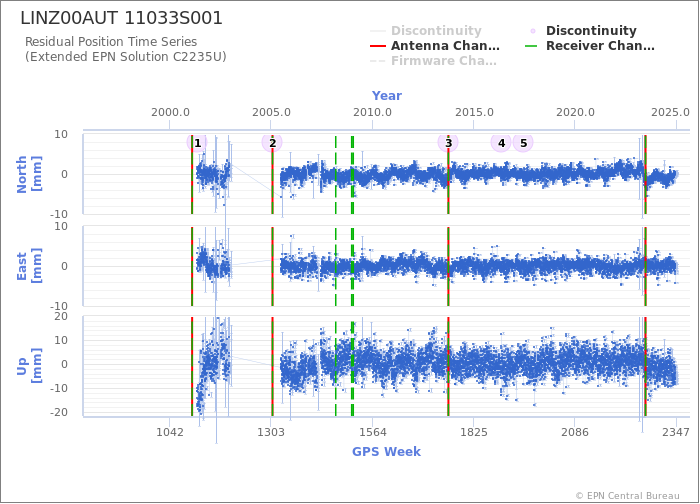

Position time series

Position time series

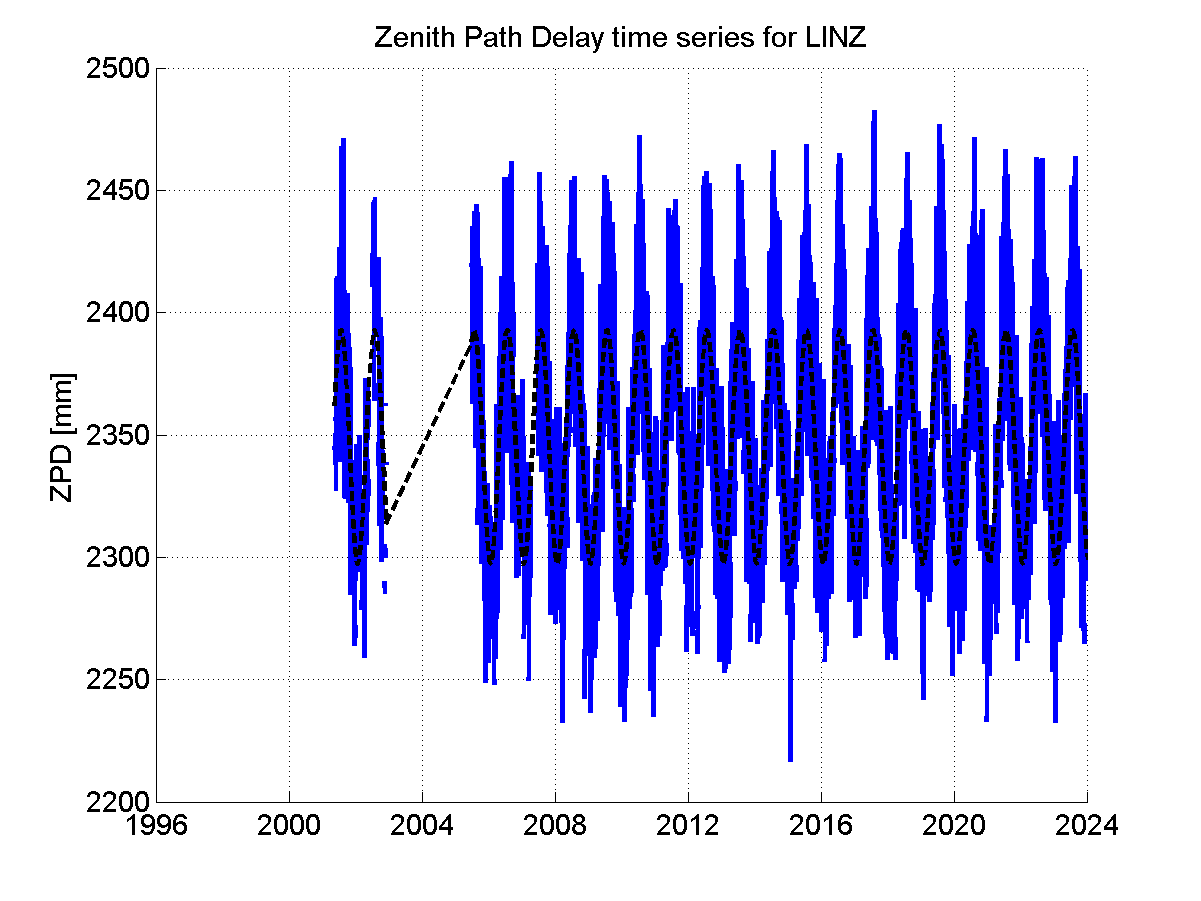

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

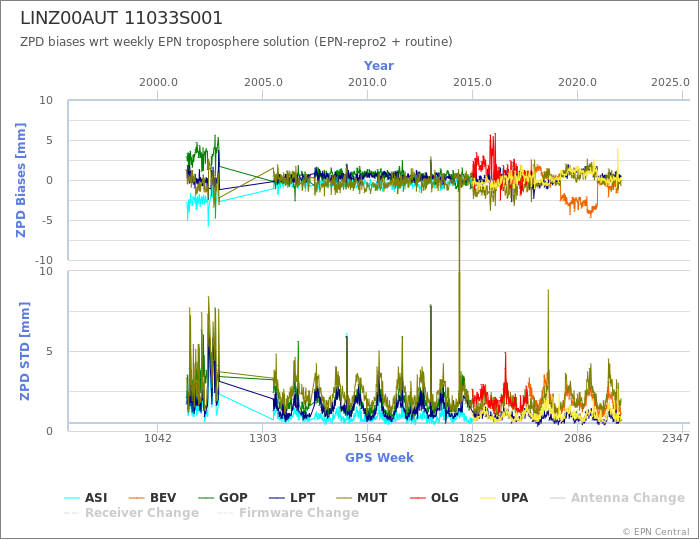

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
