Krakow, Poland (KRA100POL)

RESPONSIBLE FOR METADATA AGH (AGH University of Science and Technology)
RESPONSIBLE AGENCY AGH (AGH University of Science and Technology)
CURRENT STATION CONFIGURATION kra100pol_20180129.log
STATUS IN EPN included since 21-03-2010
LAST AVAILABLE DATA 30-09-2023
LAST RECEIVER TRIMBLE NETR5 (29-12-2016 to now)
SET TO TRACK GPS+GLO
LAST ANTENNA TRM57971.00/NONE (29-01-2018 to now)
INDIVIDUAL CALIBRATION(S)
  • TRM57971.00/NONE (SN: 30607506) from 2018-01-29 to now :
DATA ROUTINELY ANALYSED BY BEV, MUT, RGA, SUT, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 24-05-2022.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 144/2022 N/A
BEV 144/2022 N/A
BKGE 084/2022 N/A
RINEX V3.05 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 267/2023 78.57%
BEV 273/2023 100%
BKGE 273/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 144/2022 (A) N/A 0%
BKGE 083/2022 (X) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 274/2023 (X) 90.48% 90.48%
BKGE 274/2023 (X) 90.48% 90.48%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

KRA100POL0 :

  • ASI (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2023/10/01 21:34 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (48.01,21/DEC/2016) wrt site log (48.01)

    2023/10/01 21:34 RTCM 3.1/1033: Incorrect Receiver SN in stream () wrt site log (10993)

    2023/10/01 21:34 RTCM 3.1/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0 m)

  • BKG (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2023/10/01 19:26 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (48.01,21/DEC/2016) wrt site log (48.01)

    2023/10/01 19:26 RTCM 3.1/1033: Incorrect Receiver SN in stream () wrt site log (10993)

    2023/10/01 19:26 RTCM 3.1/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0 m)

  • ROB (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2023/10/02 00:25 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (48.01,21/DEC/2016) wrt site log (48.01)

    2023/10/02 00:25 RTCM 3.1/1033: Incorrect Receiver SN in stream () wrt site log (10993)

    2023/10/02 00:25 RTCM 3.1/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0 m)

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station KRA100POL
Last ETRF2000 position valid from 033/2010 to 316/2022
expressed at epoch 001/2010
X = 3856938.930 m Vx = -0.0003 m/y
Y = 1397750.208 m Vy = -0.0004 m/y
Z = 4867717.332 m Vz = -0.0007 m/y

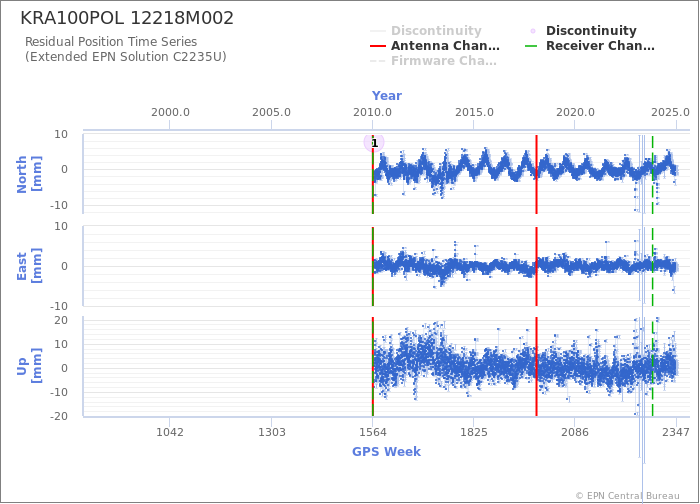

Position time series

Position time series

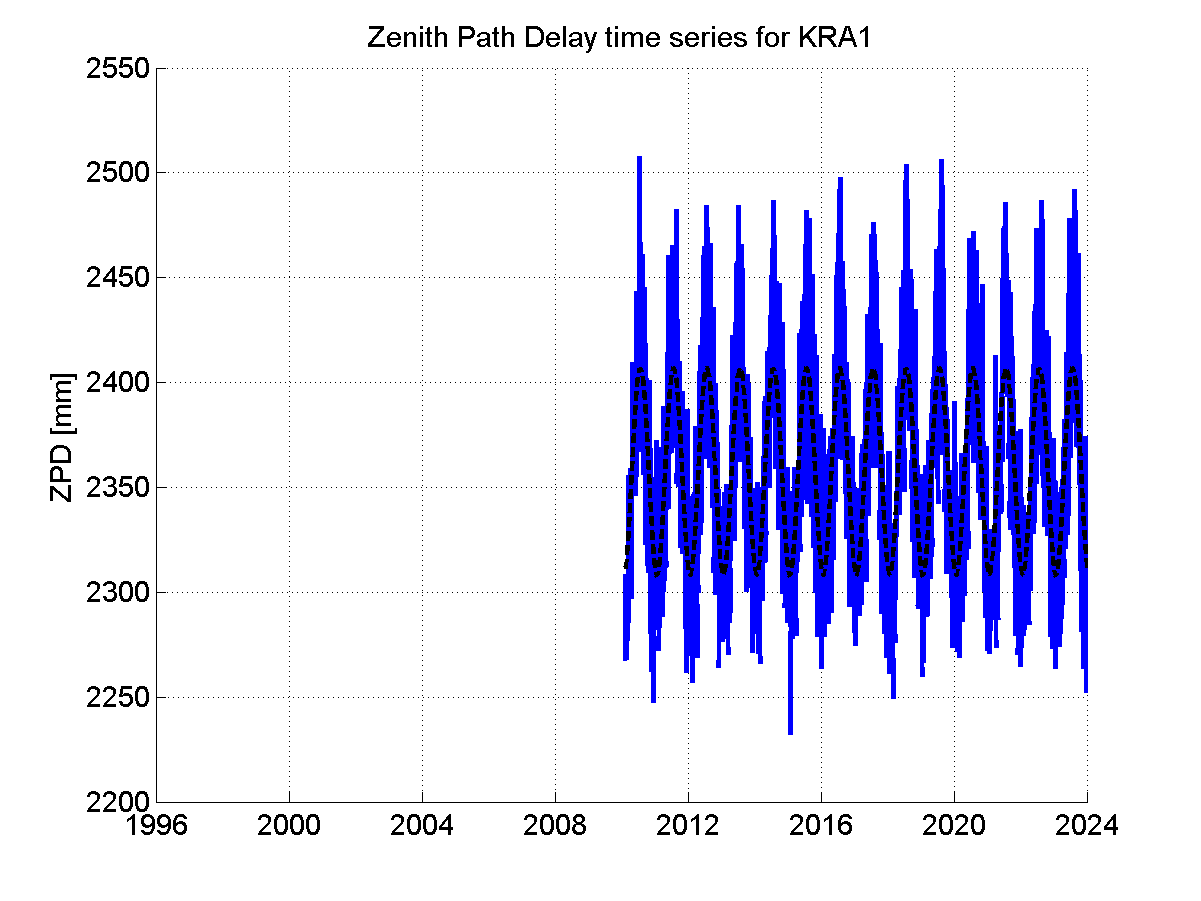

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

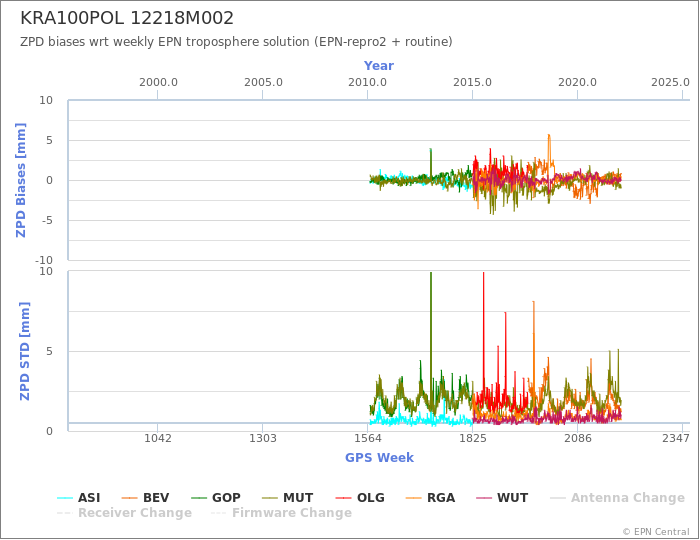

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
