Kiruna, Sweden (KIR000SWE)

RESPONSIBLE AGENCY LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
RESPONSIBLE FOR METADATA LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
CURRENT STATION CONFIGURATION kir000swe_20231017.log
STATUS IN EPN included since 03-11-1996
LAST AVAILABLE DATA 15-04-2024
LAST RECEIVER SEPT POLARX5 (08-12-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA JAVRINGANT_DM/OSOD (17-10-2023 to now)
INDIVIDUAL CALIBRATION(S)
  • JNSCR_C146-22-1/OSOD (SN: 00368) from 2016-08-23 to 2023-10-17 :
DATA ROUTINELY ANALYSED BY COD, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 28-04-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 118/2020 N/A
BEV 023/2020 N/A
BKGI 118/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+QZSS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 100/2024 78.57%
BEV 106/2024 100%
BKGI 106/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 107/2024 (I) 100% 98.21%
BKGI 107/2024 (I) 100% 99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

KIR000SWE0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM5)

    2024/04/15 21:28 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/04/15 21:28 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt source table (GPS+GLO)

    2024/04/15 21:28 RTCM 3.2/1008: Incorrect Antenna-Radome type in stream (JAVRINGANT_DM NONE A0090380) wrt site log (JAVRINGANT_DM OSOD)

    2024/04/15 21:28 RTCM 3.2/1033: Incorrect Antenna-Radome type/SN (JAVRINGANT_DM NONE A0090380) wrt site log (JAVRINGANT_DM OSOD A0090380)

    2024/04/15 21:28 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0710 m) wrt site log (0.16109 m)

    2024/04/15 21:28 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2409 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM5)

    2024/04/15 19:23 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/04/15 19:23 RTCM 3.2/1008: Incorrect Antenna-Radome type in stream (JAVRINGANT_DM NONE A0090380) wrt site log (JAVRINGANT_DM OSOD)

    2024/04/15 19:23 RTCM 3.2/1033: Incorrect Antenna-Radome type/SN (JAVRINGANT_DM NONE A0090380) wrt site log (JAVRINGANT_DM OSOD A0090380)

    2024/04/15 19:23 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0710 m) wrt site log (0.16109 m)

    2024/04/15 19:23 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2409 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM5)

    2024/04/16 00:25 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/04/16 00:25 RTCM 3.2/1008: Incorrect Antenna-Radome type in stream (JAVRINGANT_DM NONE A0090380) wrt site log (JAVRINGANT_DM OSOD)

    2024/04/16 00:25 RTCM 3.2/1033: Incorrect Antenna-Radome type/SN (JAVRINGANT_DM NONE A0090380) wrt site log (JAVRINGANT_DM OSOD A0090380)

    2024/04/16 00:25 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0710 m) wrt site log (0.16109 m)

    2024/04/16 00:25 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2409 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station KIR000SWE
Last ETRF2000 position valid from 241/2016 to 316/2022
expressed at epoch 001/2010
X = 2248123.529 m Vx = 0.0017 m/y
Y = 865686.562 m Vy = 0.0002 m/y
Z = 5886425.671 m Vz = 0.0055 m/y

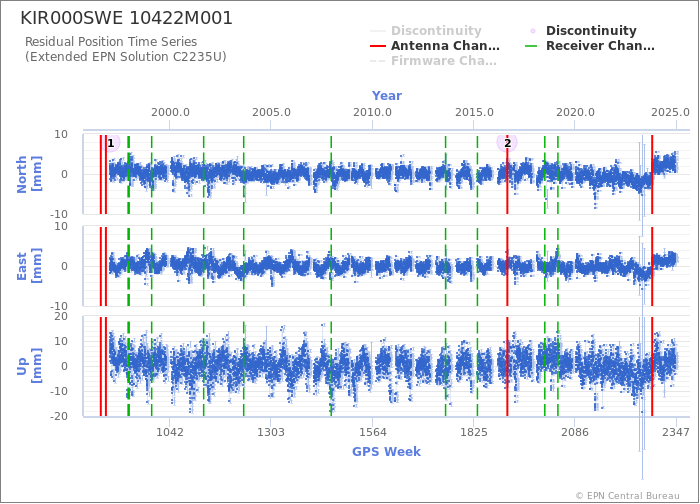

Position time series

Position time series

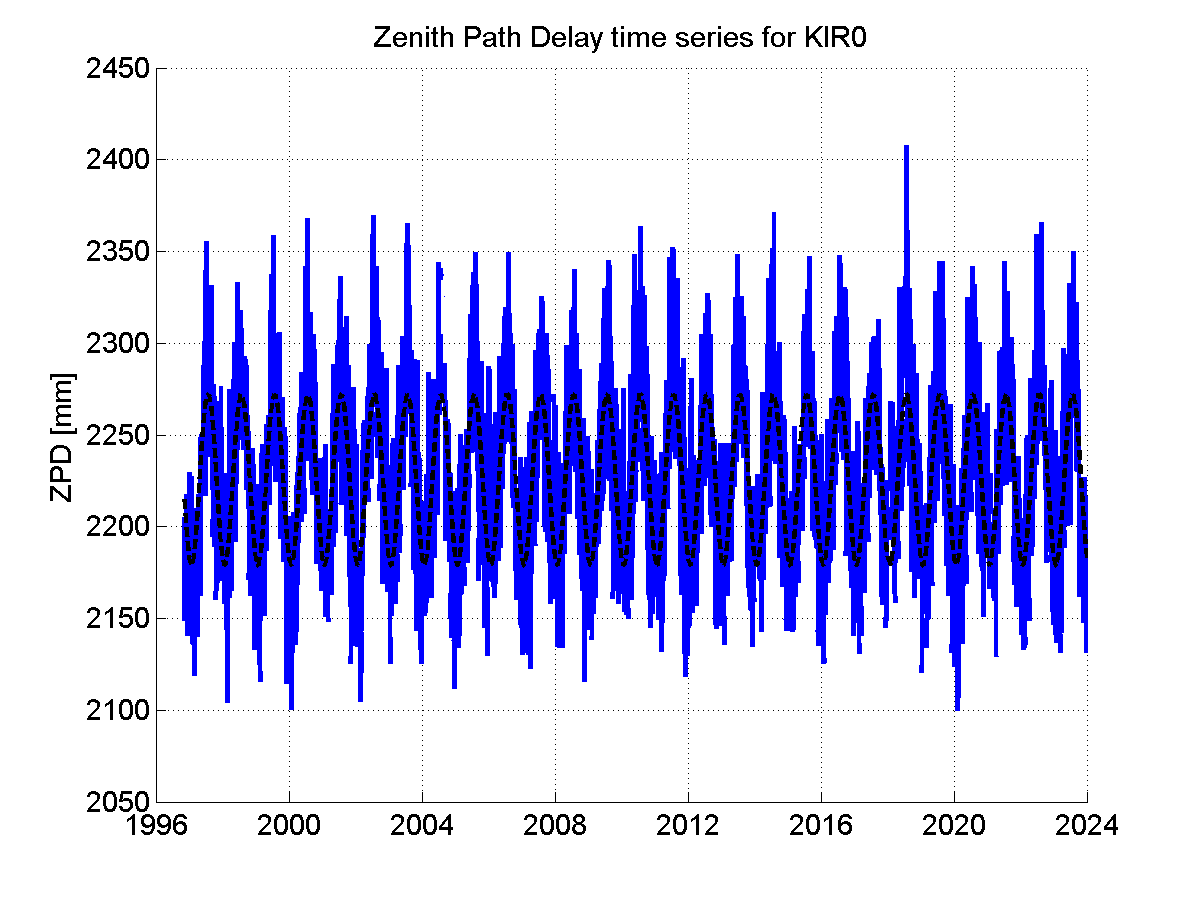

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

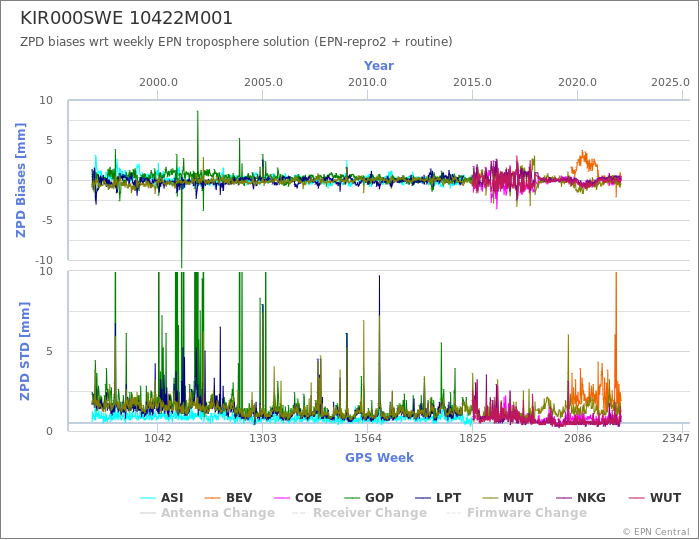

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
