EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	helg00deu_20230419.log
STATUS IN EPN	included since 28-11-1999
LAST AVAILABLE DATA	01-10-2023
LAST RECEIVER	JAVAD TRE_3 DELTA (08-02-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (11-09-2018 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725559) from 2014-09-09 to 2018-09-11 : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C07, C06, I05, date: 2018-10-15) - careful: not used within EPN analysis BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2019-04-26) - careful: not used within EPN analysis GEO - ROBOT (freq: G01, G02, R01, R02, date: 2013-01-10) BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2013-03-12) - careful: not used within EPN analysis LEIAR25.R4/LEIT (SN: 726342) from 2018-09-11 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2016-04-06) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C07, C06, I05, date: 2018-04-24) LEIAT504GG/LEIS (SN: 200446) from 2008-09-02 to 2014-09-09 : GEO - ROBOT (freq: G01, G02, date: 2008-07-18)
DATA ROUTINELY ANALYSED BY	BKG, COD, GFZ, LPT, SUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-11-2021.

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

HELG00DEU0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2023/10/01 20:22 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2023/10/01 20:22 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2023/10/01 20:22 RTCM 3.2/1033: Incorrect Receiver SN in stream (1PVYSE0J310DY0QYWF01) wrt site log (02540)
2023/10/01 20:22 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7214 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2023/10/01 18:12 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2023/10/01 18:12 RTCM 3.2/1033: Incorrect Receiver SN in stream (1PVYSE0J310DY0QYWF01) wrt site log (02540)
2023/10/01 18:12 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7214 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2023/10/01 23:14 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2023/10/01 23:14 RTCM 3.2/1033: Incorrect Receiver SN in stream (1PVYSE0J310DY0QYWF01) wrt site log (02540)
2023/10/01 23:14 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7214 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

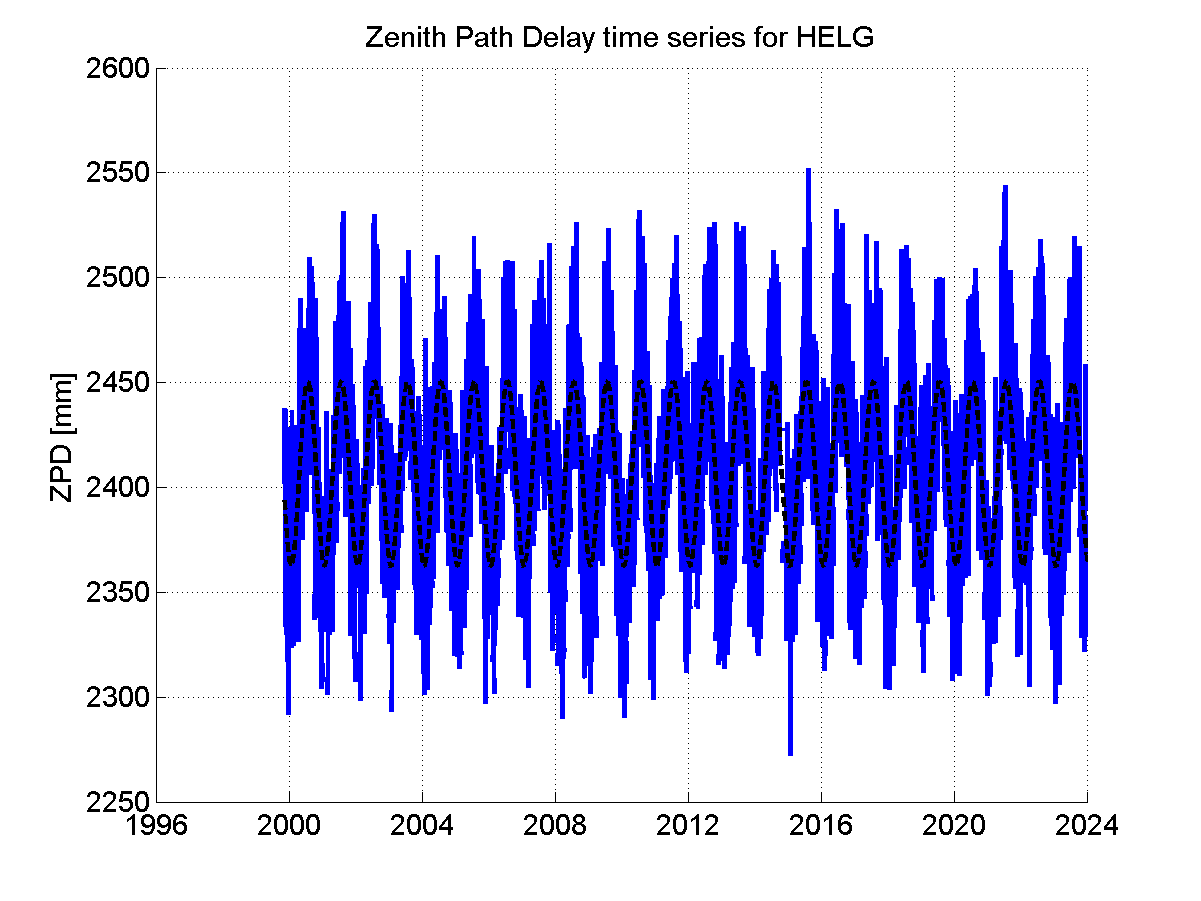

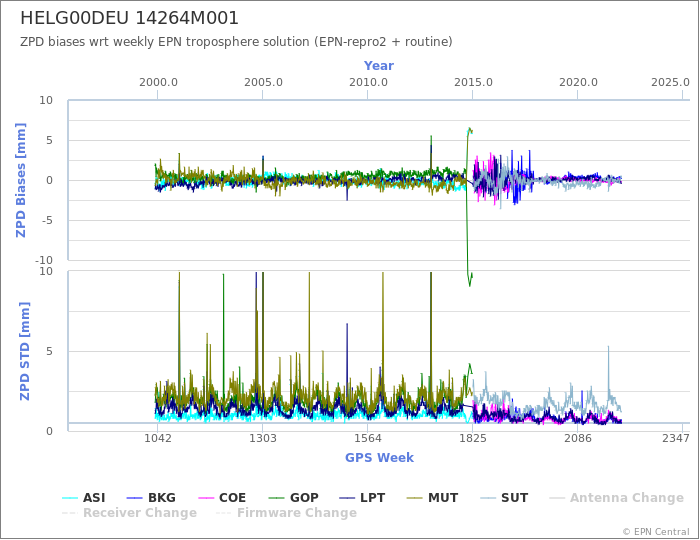

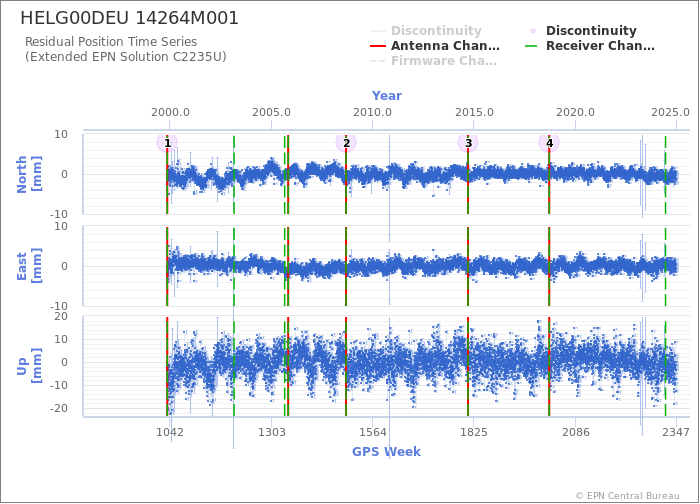

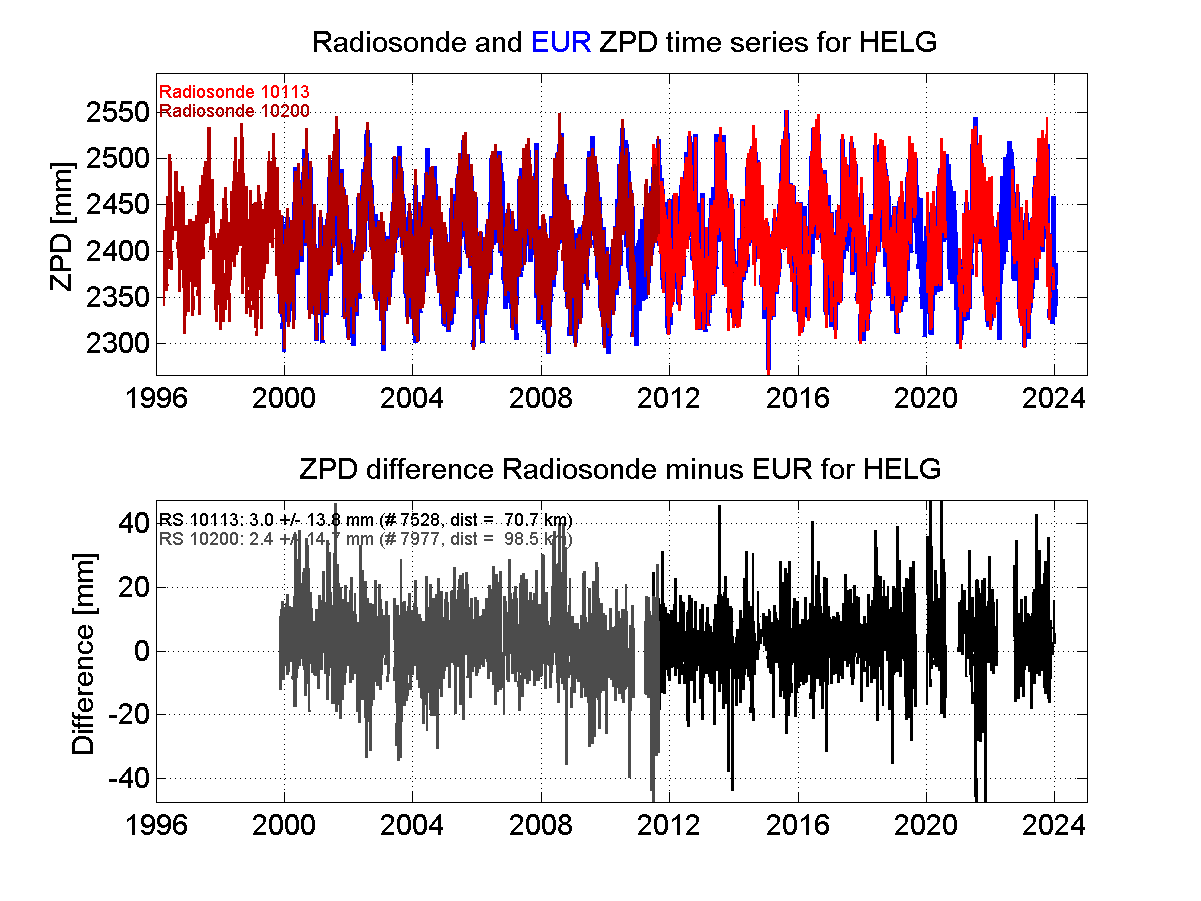

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station HELG00DEU
Last ETRF2000 position valid from 255/2018 to 316/2022 expressed at epoch 001/2010
X = 3706067.469 m	Vx = -0.0004 m/y
Y = 513803.665 m	Vy = -0.0004 m/y
Z = 5148174.268 m	Vz = -0.0004 m/y
