EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGN_RGP (Institut National de l'Information Géographique et Forestière)
RESPONSIBLE FOR METADATA	IGN_RGP (Institut National de l'Information Géographique et Forestière)
CURRENT STATION CONFIGURATION	guip00fra_20240716.log
STATUS IN EPN	included since 03-07-2005
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	17-01-2025
LAST RECEIVER	LEICA GR50 (16-07-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	TRM57971.00/NONE (30-01-2020 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	GFZ, IGN, LPT, ROB, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station GUIP00FRA
Last ETRF2000 position valid from 029/2017 to 316/2022 expressed at epoch 001/2010
X = 4226392.967 m	Vx = -0.0011 m/y
Y = -326080.503 m	Vy = -0.0003 m/y
Z = 4749929.158 m	Vz = -0.0007 m/y

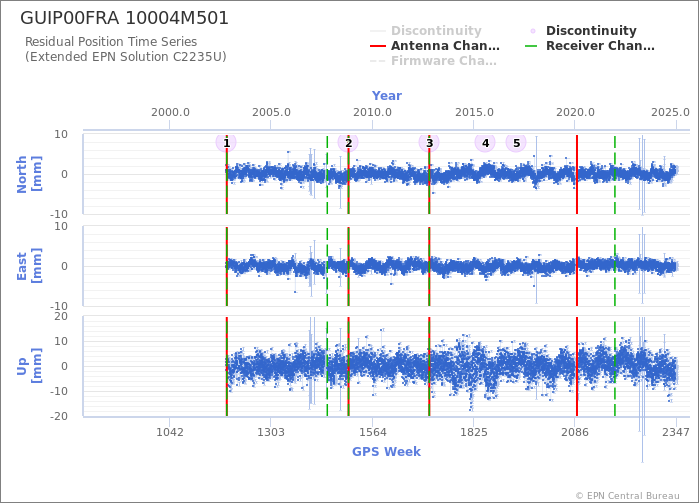

Position time series

Tropospheric Delays

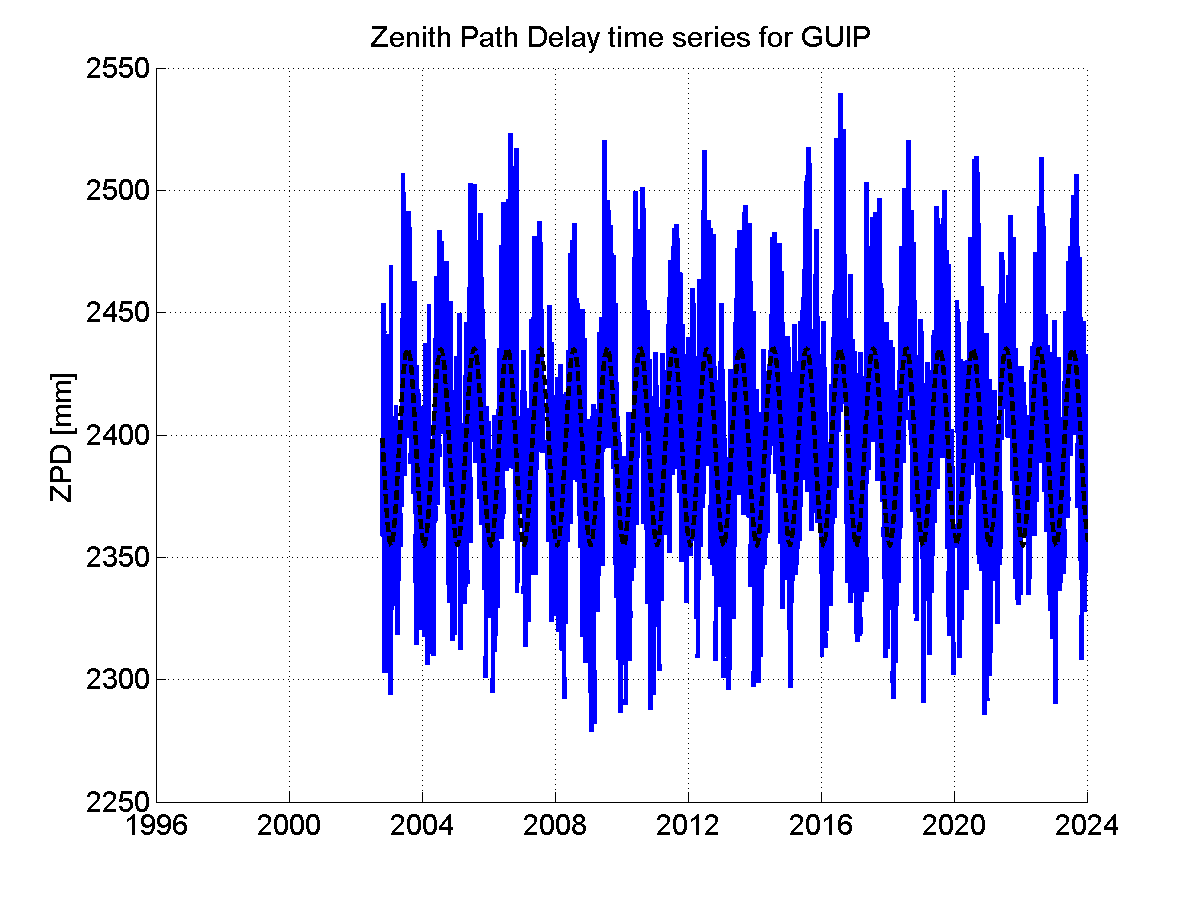

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Guipavas, France (GUIP00FRA)
