Ondrejov, Czechia (GOPE00CZE)

RESPONSIBLE FOR METADATA GOP (Geodetic Observatory Pecny, RIGTC)
RESPONSIBLE AGENCY GOP (Geodetic Observatory Pecny, RIGTC)
CURRENT STATION CONFIGURATION gope00cze_20210901.log
STATUS IN EPN included since 31-12-1995
LAST AVAILABLE DATA 02-10-2023
LAST RECEIVER TRIMBLE ALLOY (30-09-2020 to now)
SET TO TRACK GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA TPSCR.G3/TPSH (17-07-2018 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, LPT, RGA, SUT, UPA, WUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 16-03-2022.

RINEX V2.11 - GPS+GLO+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 074/2022 N/A
BEV 074/2022 N/A
BKGI 074/2022 N/A
RINEX V3.03 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 269/2023 78.57%
BEV 275/2023 100%
BKGI 275/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 075/2022 (A) N/A 0%
BKGI 075/2022 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 276/2023 (J) 100% 99.4%
BKGI 276/2023 (K) 100% 99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

GOPE00CZE0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM4)

    2023/10/02 20:13 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/10/02 20:13 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt source table (GPS+GLO+GAL+BDS)

    2023/10/02 20:13 RTCM 3.2/1008: Incorrect Antenna-Radome type in stream () wrt site log (TPSCR.G3 TPSH)

    2023/10/02 20:13 RTCM 3.2/1033: Incorrect Antenna-Radome type/SN () wrt site log (TPSCR.G3 TPSH 30161)

    2023/10/02 20:13 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.45,06/MAR/2020) wrt site log (5.45)

    2023/10/02 20:13 RTCM 3.2/1033: Incorrect Receiver SN in stream (5818R40016) wrt site log (40016)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS+QZSS (MSM4)

    2023/10/02 18:01 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/10/02 18:01 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS) wrt source table (GPS+GLO+GAL+BDS)

    2023/10/02 18:01 RTCM 3.2/1008: Incorrect Antenna-Radome type in stream () wrt site log (TPSCR.G3 TPSH)

    2023/10/02 18:01 RTCM 3.2/1033: Incorrect Antenna-Radome type/SN () wrt site log (TPSCR.G3 TPSH 30161)

    2023/10/02 18:01 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.45,06/MAR/2020) wrt site log (5.45)

    2023/10/02 18:01 RTCM 3.2/1033: Incorrect Receiver SN in stream (5818R40016) wrt site log (40016)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM4)

    2023/10/02 23:05 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/10/02 23:05 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+QZSS)

    2023/10/02 23:05 RTCM 3.2/1008: Incorrect Antenna-Radome type in stream () wrt site log (TPSCR.G3 TPSH)

    2023/10/02 23:05 RTCM 3.2/1033: Incorrect Antenna-Radome type/SN () wrt site log (TPSCR.G3 TPSH 30161)

    2023/10/02 23:05 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.45,06/MAR/2020) wrt site log (5.45)

    2023/10/02 23:05 RTCM 3.2/1033: Incorrect Receiver SN in stream (5818R40016) wrt site log (40016)

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station GOPE00CZE
Last ETRF2000 position valid from 354/2009 to 316/2022
expressed at epoch 001/2010
X = 3979316.440 m Vx = -0.0003 m/y
Y = 1050312.252 m Vy = -0.0002 m/y
Z = 4857066.903 m Vz = -0.0006 m/y

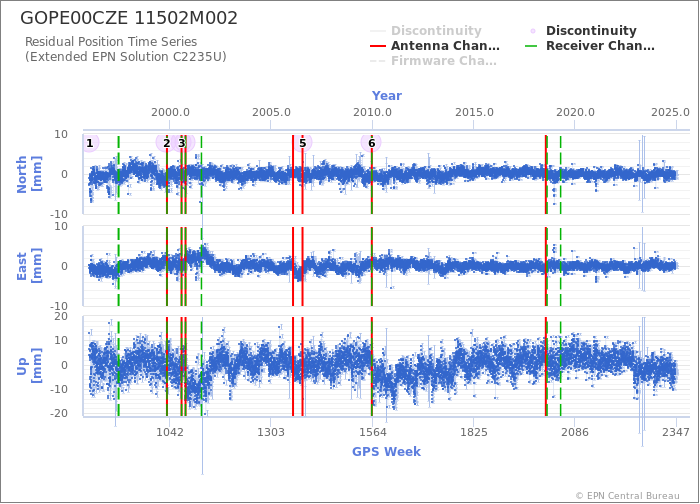

Position time series

Position time series

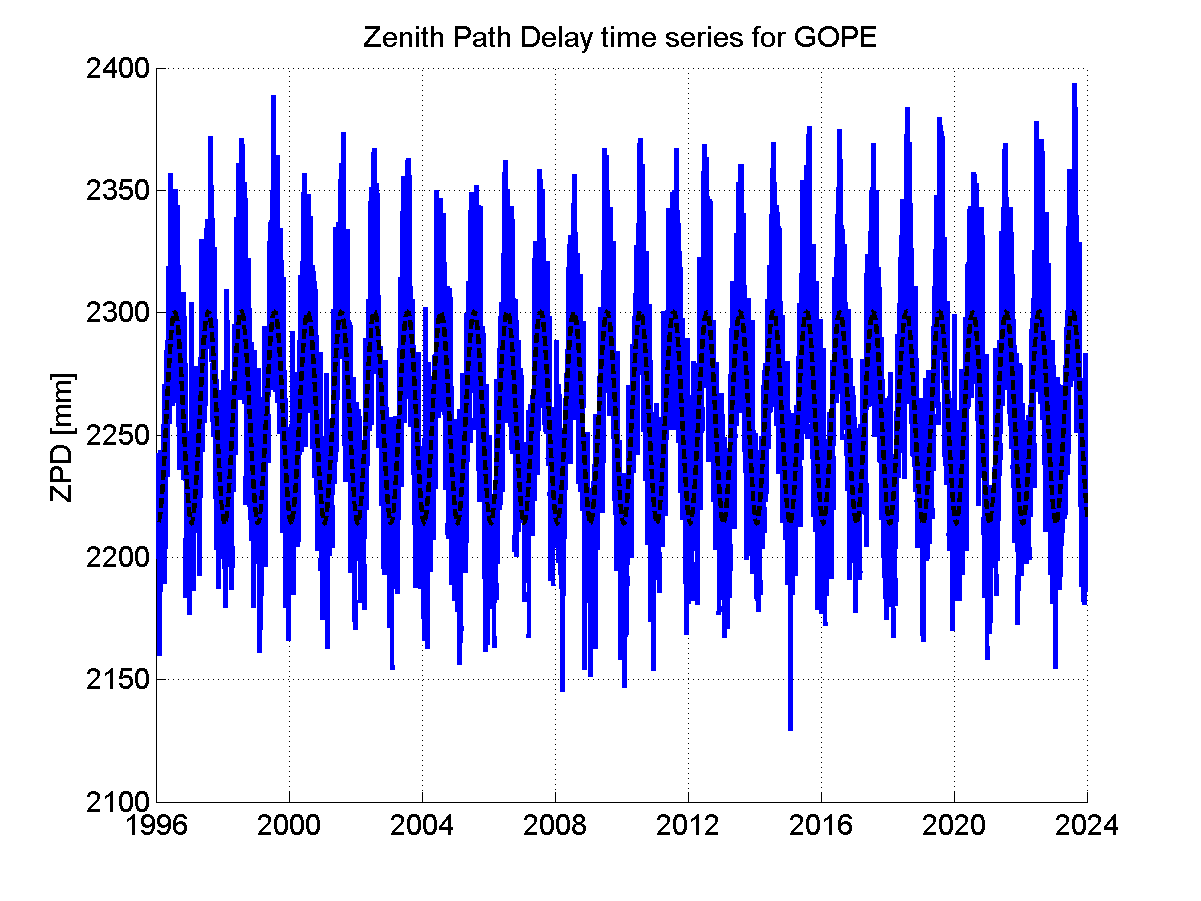

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

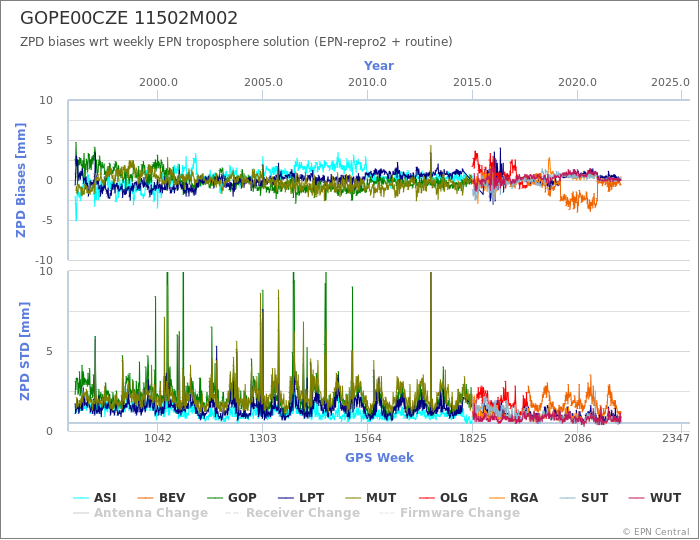

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

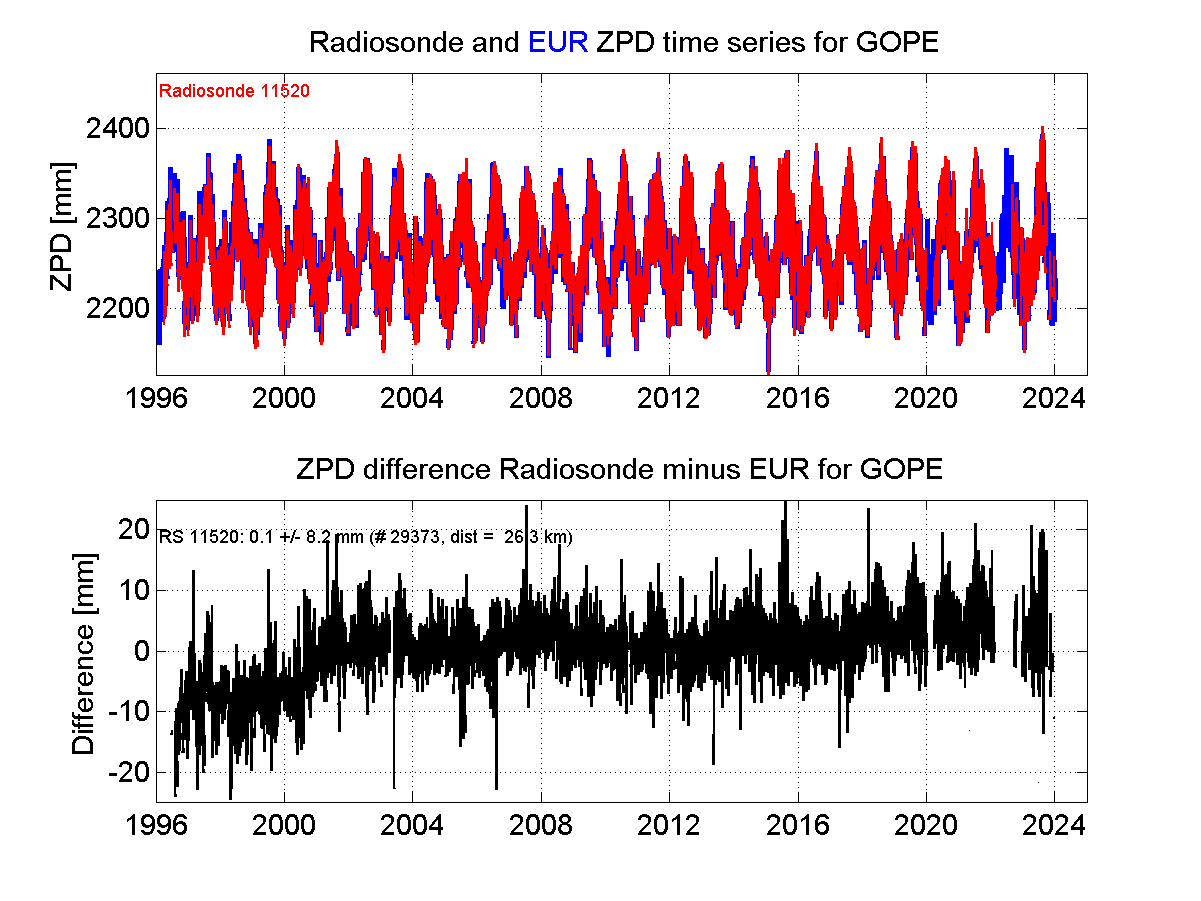

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
