Ondrejov, Czechia (GOP600CZE)

RESPONSIBLE FOR METADATA GOP (Geodetic Observatory Pecny, RIGTC)
RESPONSIBLE AGENCY GOP (Geodetic Observatory Pecny, RIGTC)
CURRENT STATION CONFIGURATION gop600cze_20230925.log
STATUS IN EPN included since 05-07-2015
LAST AVAILABLE DATA 02-10-2023
LAST RECEIVER SEPT POLARX5 (25-09-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA SEPCHOKE_B3E6/SPKE (09-04-2019 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R4/LEIT (SN: 725071) from 2011-12-21 to 2012-04-10, from 2012-04-10 to 2019-04-09 :
  • SEPCHOKE_B3E6/SPKE (SN: 5287) from 2019-04-09 to now :
DATA ROUTINELY ANALYSED BY BEV, BKG, GFZ, LPT, SUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 16-03-2022.

RINEX V2.11 - GPS+GLO+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 074/2022 N/A
BEV 074/2022 N/A
BKGI 074/2022 N/A
RINEX V4.00 - GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 269/2023 75%
BEV 267/2023 71.43%
BKGI 275/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 075/2022 (A) N/A 0%
BKGI 075/2022 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 268/2023 (T) 0% 0%
BKGI 276/2023 (I) 100% 97.02%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

GOP600CZE0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2023/10/02 20:10 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS+SBAS) wrt source table (GPS+GLO)

    2023/10/02 20:10 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0650 m) wrt site log (0.0653 m)

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2023/10/02 17:58 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0650 m) wrt site log (0.0653 m)

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2023/10/02 23:02 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0650 m) wrt site log (0.0653 m)

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station GOP600CZE
Last ETRF2000 position valid from 100/2019 to 316/2022
expressed at epoch 001/2010
X = 3979319.635 m Vx = -0.0003 m/y
Y = 1050311.917 m Vy = -0.0002 m/y
Z = 4857064.367 m Vz = -0.0006 m/y

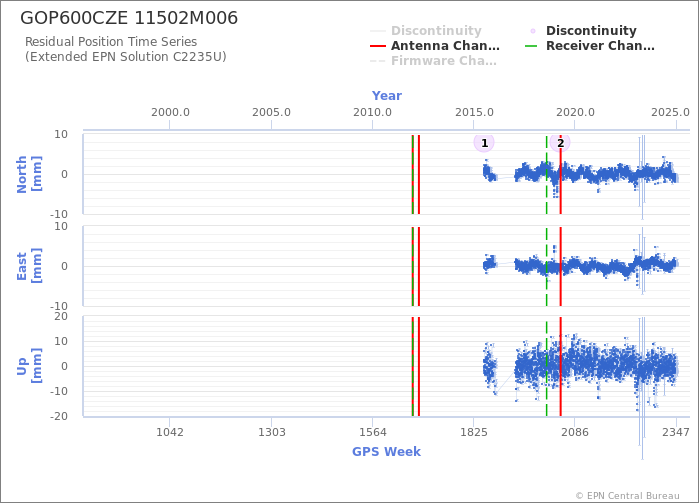

Position time series

Position time series

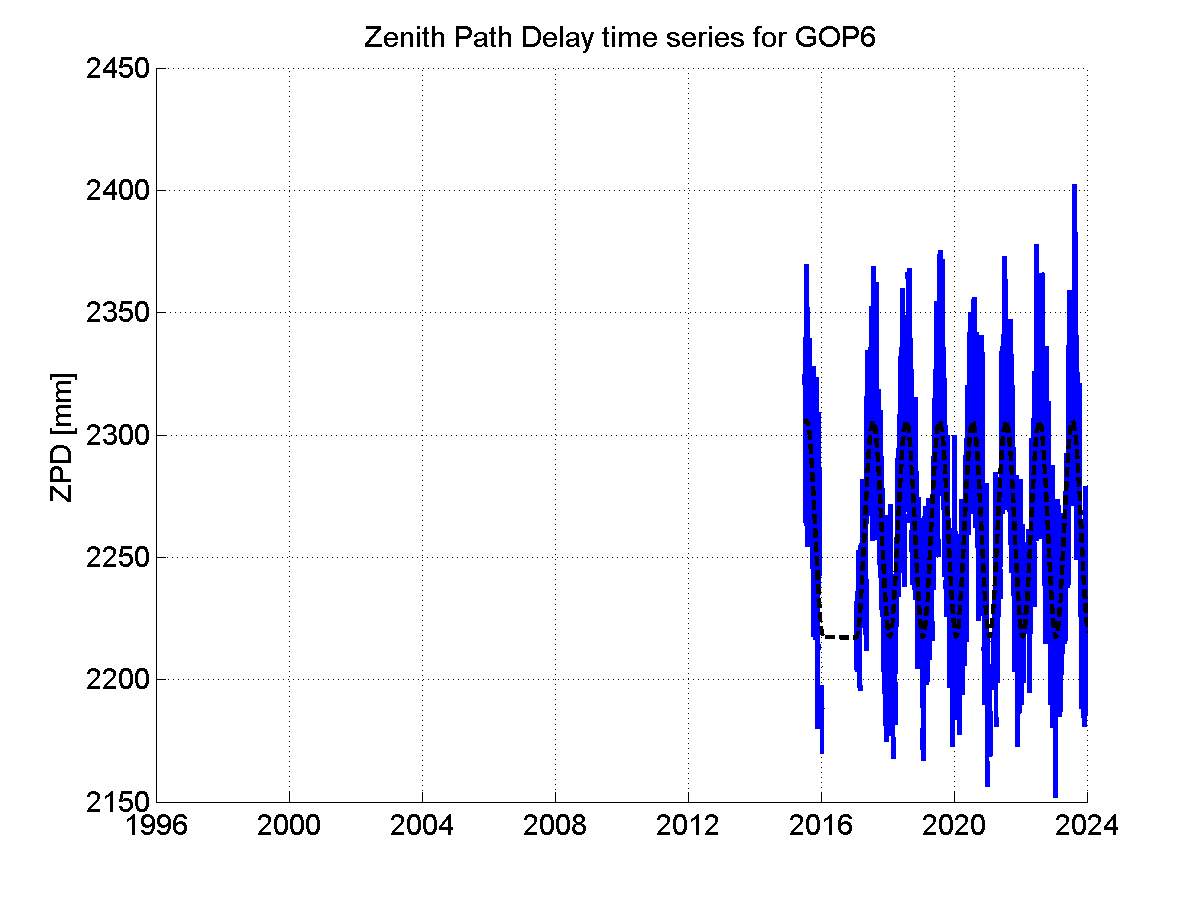

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

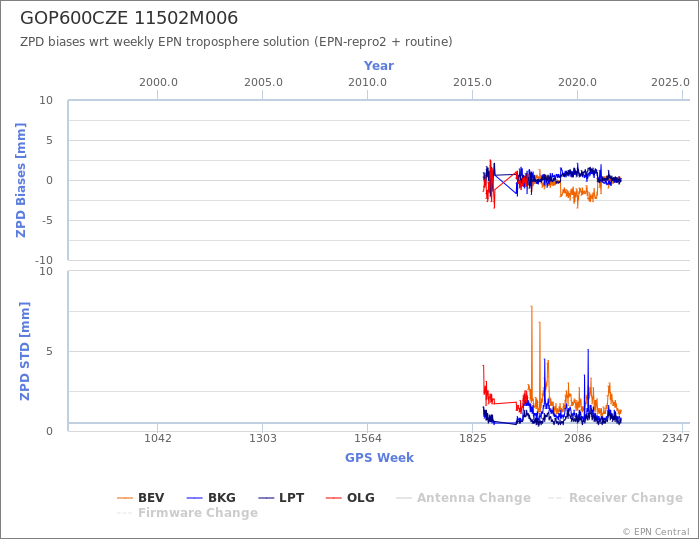

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

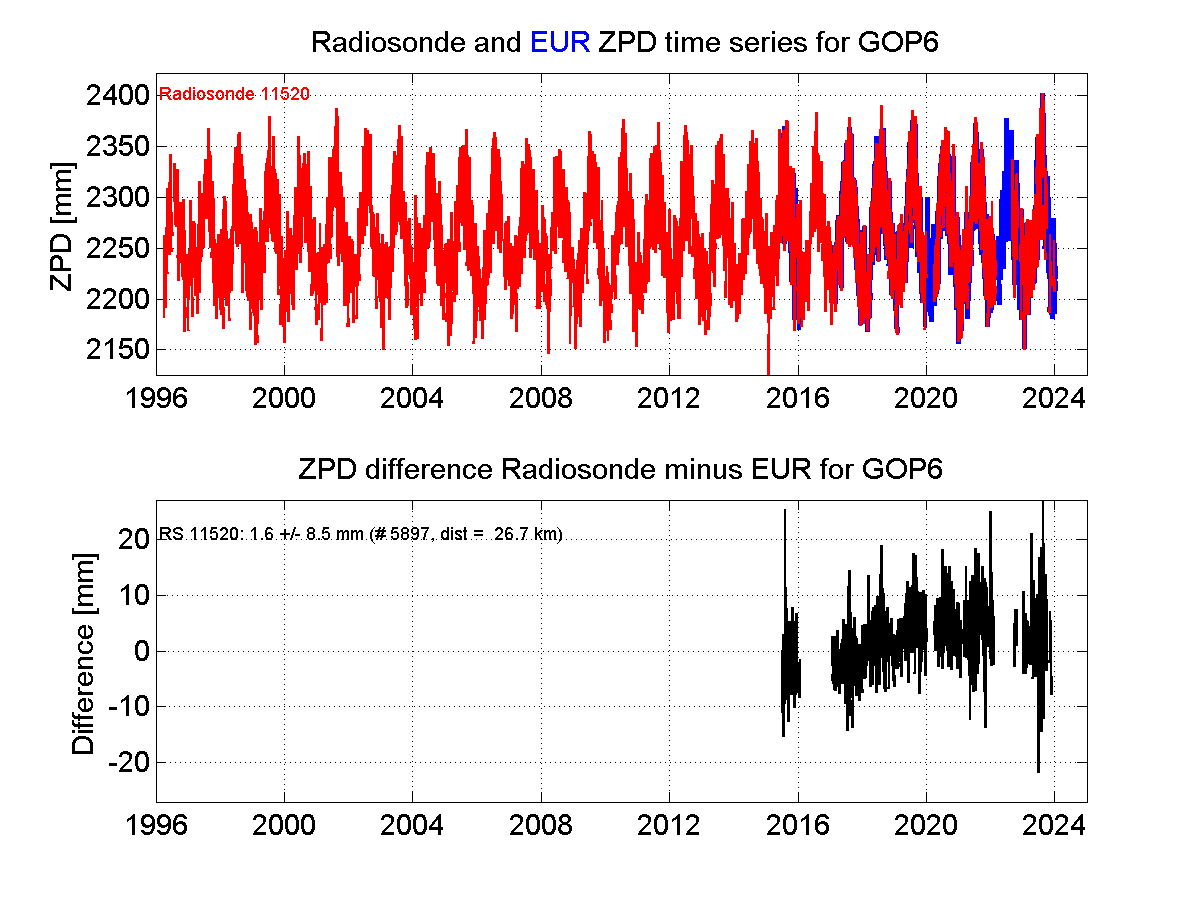

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
