Santa Cruz da Graciosa, Portugal (ENAO00PRT)

RESPONSIBLE FOR METADATA GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
RESPONSIBLE AGENCY GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
CURRENT STATION CONFIGURATION enao00prt_20230203.log
STATUS IN EPN included since 29-03-2020
LAST AVAILABLE DATA 23-09-2023
LAST RECEIVER JAVAD TRE_3 (03-02-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA JAVRINGANT_G5T/NONE (23-07-2019 to now)
INDIVIDUAL CALIBRATION(S)
  • JAVRINGANT_G5T/NONE (SN: 3222) from 2019-07-23 to now :
DATA ROUTINELY ANALYSED BY ASI, BEK, GFZ, IGE, WUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 09-01-2020.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 260/2023 78.57%
BEV 266/2023 100%
BKGI 266/2023 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 267/2023 (M) 95.83% 91.07%
BKGI 267/2023 (M) 95.83% 91.07%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

ENAO00PRT0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2020/08/14 10:42 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS+GLO+GAL)

    2020/08/14 10:42 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6961m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2023/09/23 17:17 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6846 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2023/09/23 22:27 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6846 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station ENAO00PRT
Last ETRF2000 position valid from 079/2022 to 316/2022
expressed at epoch 181/2022
X = 4375732.233 m
Y = -2329167.334 m
Z = 4000237.842 m

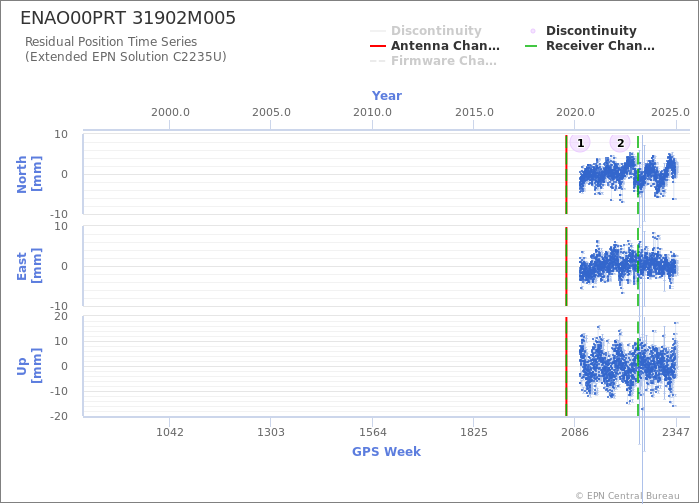

Position time series

Position time series

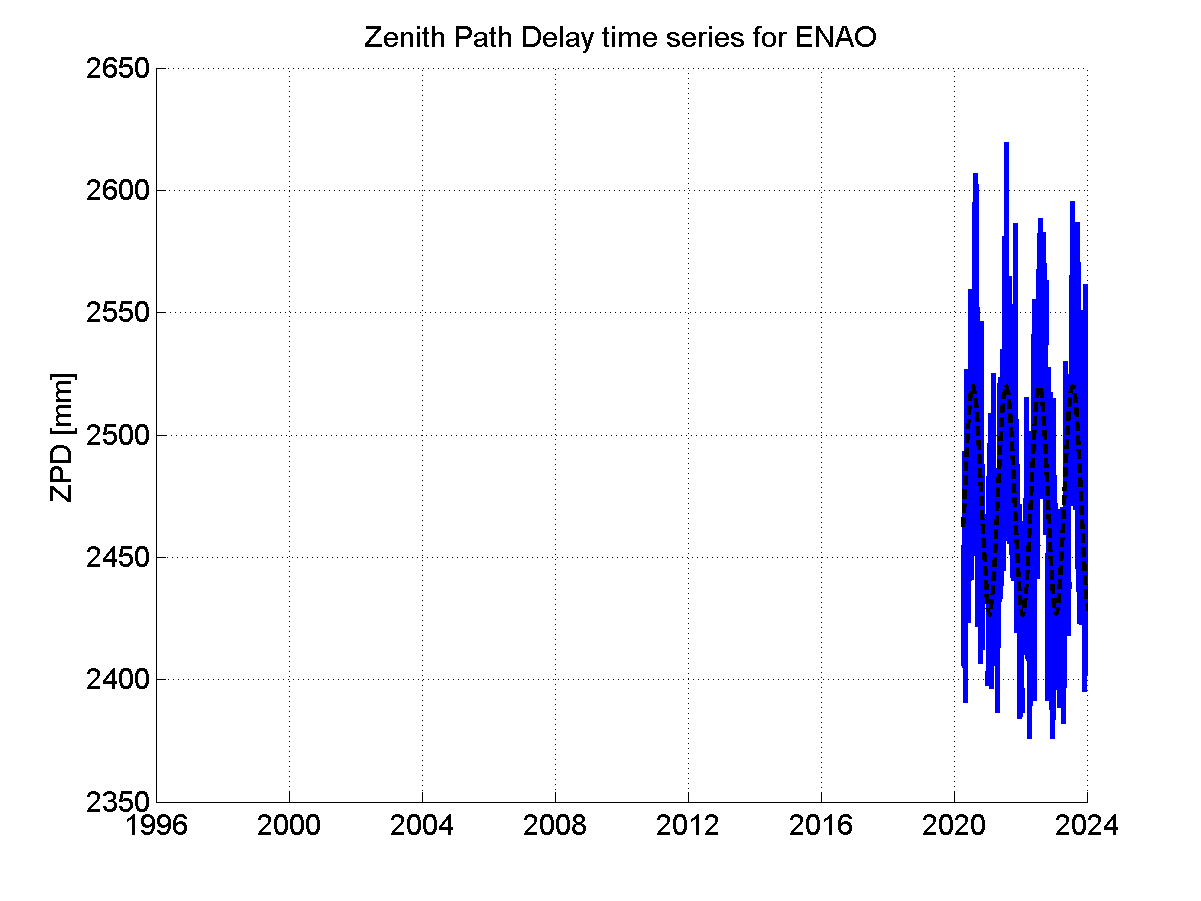

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

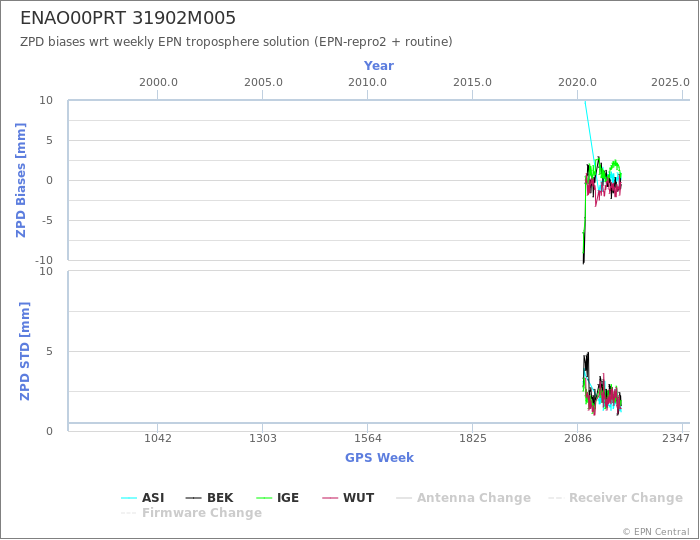

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

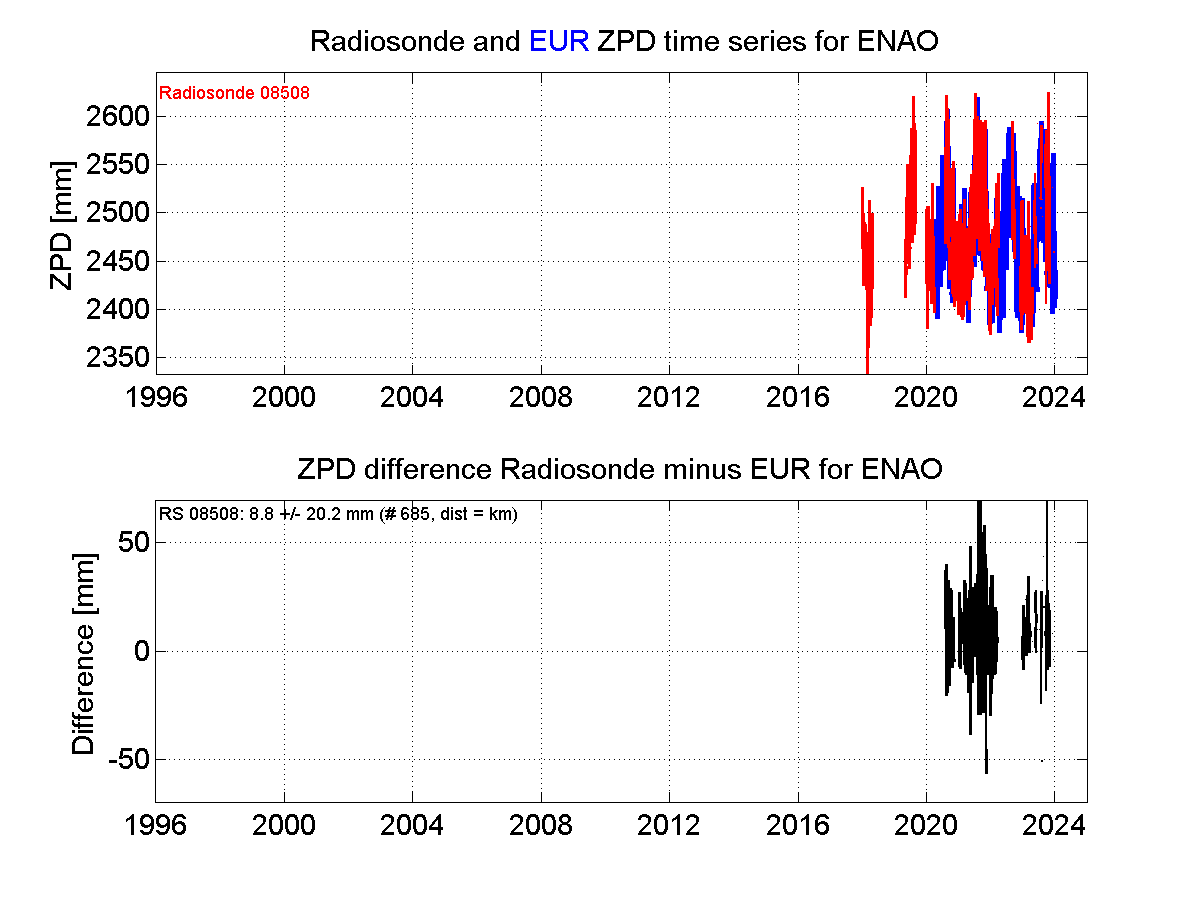

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
