San Piero Campo Nell'Elba - Elba, Italy (ELBA00ITA)

RESPONSIBLE FOR METADATA ASI (Agenzia Spaziale Italiana)
RESPONSIBLE AGENCY ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION elba00ita_20230607.log
STATUS IN EPN included since 14-10-2001
LAST AVAILABLE DATA 02-10-2023
LAST RECEIVER LEICA GR30 (17-04-2020 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR20/NONE (30-01-2018 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, GFZ, RGA, UPA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 03-08-2020.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 209/2020 N/A
BEV 003/2020 N/A
BKGE 209/2020 N/A
RINEX V3.03 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 269/2023 78.57%
BEV 275/2023 100%
BKGE 275/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 209/2020 (U) N/A 0%
BKGE 209/2020 (T) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 276/2023 (J) 100% 100%
BKGE 276/2023 (J) 100% 99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

ELBA00ITA0 :

  • ASI (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2023/10/02 19:32 RTCM 3.1 : Unexpected constellations in stream (GPS+GLO) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/10/02 19:32 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (4.35.173) wrt site log (4.35/7.504)

  • BKG (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2023/10/02 17:17 RTCM 3.1 : Unexpected constellations in stream (GPS+GLO) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/10/02 17:17 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (4.35.173) wrt site log (4.35/7.504)

  • ROB (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2023/10/02 22:20 RTCM 3.1 : Unexpected constellations in stream (GPS+GLO) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/10/02 22:20 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (4.35.173) wrt site log (4.35/7.504)

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ELBA00ITA
Last ETRF2000 position valid from 035/2018 to 316/2022
expressed at epoch 001/2010
X = 4616534.189 m Vx = -0.0006 m/y
Y = 831568.407 m Vy = -0.0009 m/y
Z = 4307569.761 m Vz = -0.0003 m/y

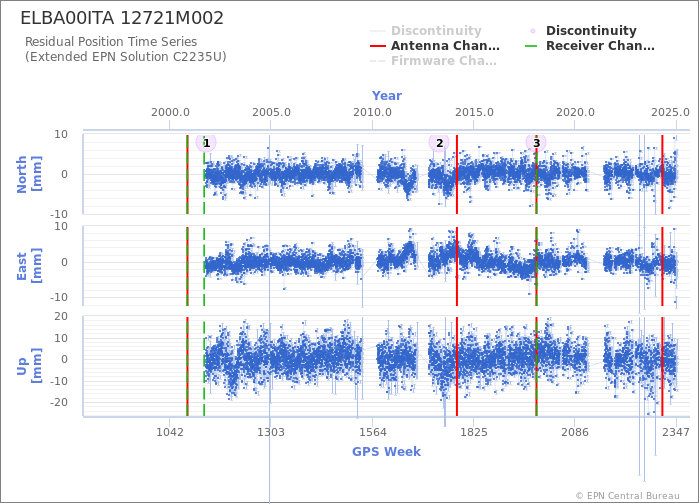

Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

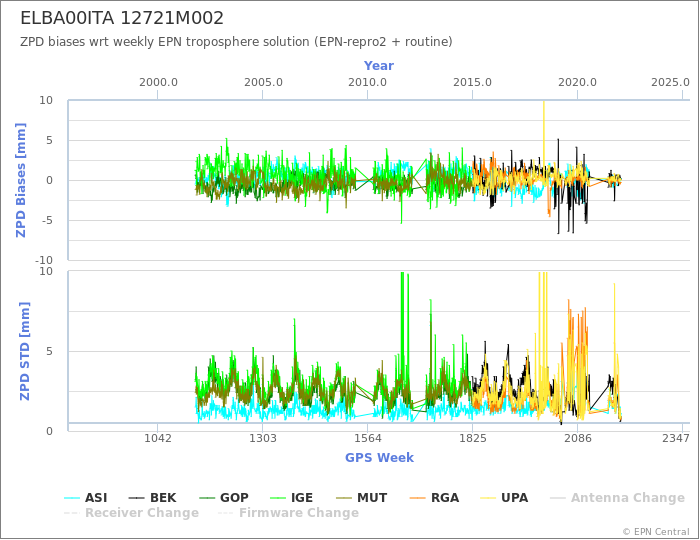

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
