EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE FOR METADATA	LIENSS (Observatoire Aquitain des Sciences de l'Univers)
RESPONSIBLE AGENCY	RESIF (Réseau sismologique et géodésique francais, CNRS)
CURRENT STATION CONFIGURATION	chiz00fra_20230525.log
STATUS IN EPN	included since 26-11-2000
LAST AVAILABLE DATA	30-09-2023
LAST RECEIVER	LEICA GR25 (13-03-2019 to now)
SET TO TRACK	GPS+GLO+GAL+SBAS
LAST ANTENNA	ASH701945B_M/NONE (19-10-2000 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	IGN, MUT, ROB, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-03-2022.

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

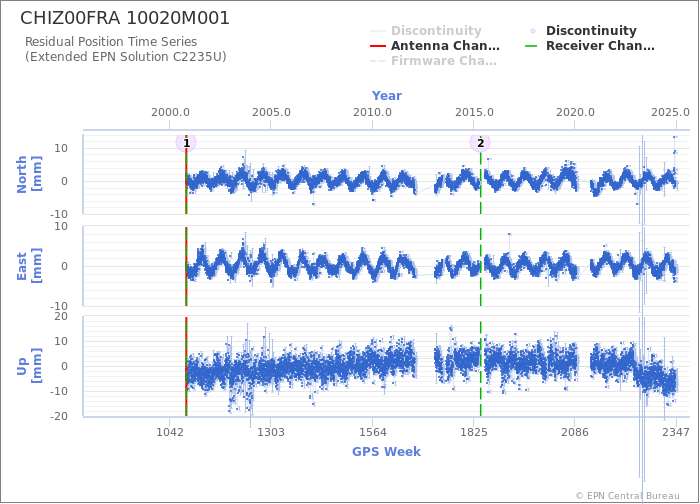

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station CHIZ00FRA
Last ETRF2000 position valid from 200/2015 to 316/2022 expressed at epoch 001/2010
X = 4427603.471 m	Vx = -0.0006 m/y
Y = -31506.294 m	Vy = -0.0002 m/y
Z = 4575621.576 m	Vz = -0.0007 m/y
