EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	bcln00esp_20230720.log
STATUS IN EPN	included since 02-08-2015
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	LEICA GR10 (18-07-2023 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	LEIAR25.R4/LEIT (31-01-2012 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725229) from 2012-01-31 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-09-13)
DATA ROUTINELY ANALYSED BY	ASI, BEK, IGE, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

BCLN00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/04/18 17:42 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt source table (GPS+GLO)
2024/04/18 17:42 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/6.525)
2024/04/18 17:42 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0776 m) wrt site log (0.23657 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/04/18 15:30 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/6.525)
2024/04/18 15:30 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0776 m) wrt site log (0.23657 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/04/18 20:30 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/6.525)
2024/04/18 20:30 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0776 m) wrt site log (0.23657 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

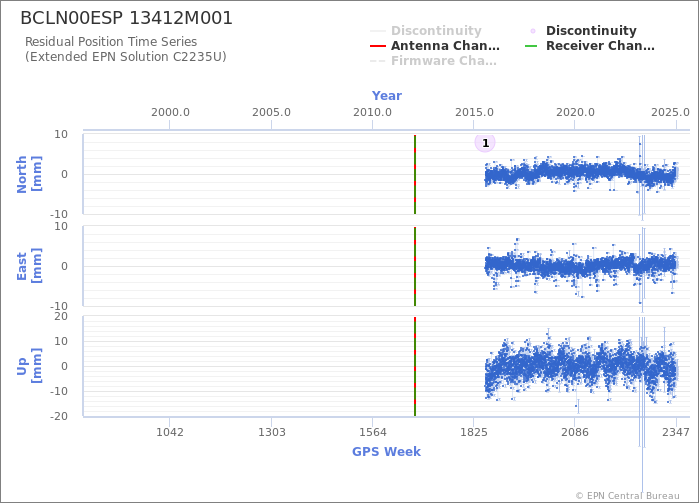

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BCLN00ESP
Last ETRF2000 position valid from 214/2015 to 316/2022 expressed at epoch 001/2010
X = 4788065.146 m	Vx = -0.0005 m/y
Y = 167551.174 m	Vy = -0.0006 m/y
Z = 4196354.997 m	Vz = -0.0008 m/y
