EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	NACLR (National Center for Cartography)
RESPONSIBLE FOR METADATA	NACLR (National Center for Cartography)
CURRENT STATION CONFIGURATION	baia00rou_20240401.log
STATUS IN EPN	included since 12-02-2006
LAST AVAILABLE DATA	17-04-2024
LAST RECEIVER	LEICA GR50 (29-03-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR20/LEIM (01-10-2020 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, MUT, RGA, SGO, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 16-02-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BAIA00ROU
Last ETRF2000 position valid from 276/2020 to 316/2022 expressed at epoch 001/2010
X = 3945840.129 m	Vx = 0.0000 m/y
Y = 1720428.049 m	Vy = -0.0003 m/y
Z = 4691082.521 m	Vz = -0.0009 m/y

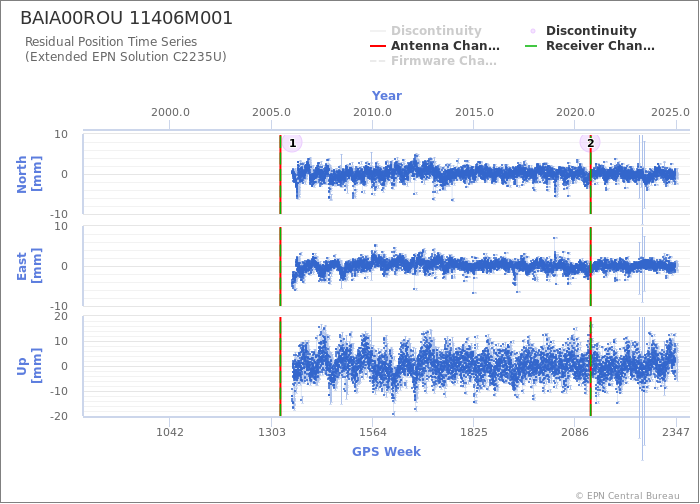

Position time series

Tropospheric Delays

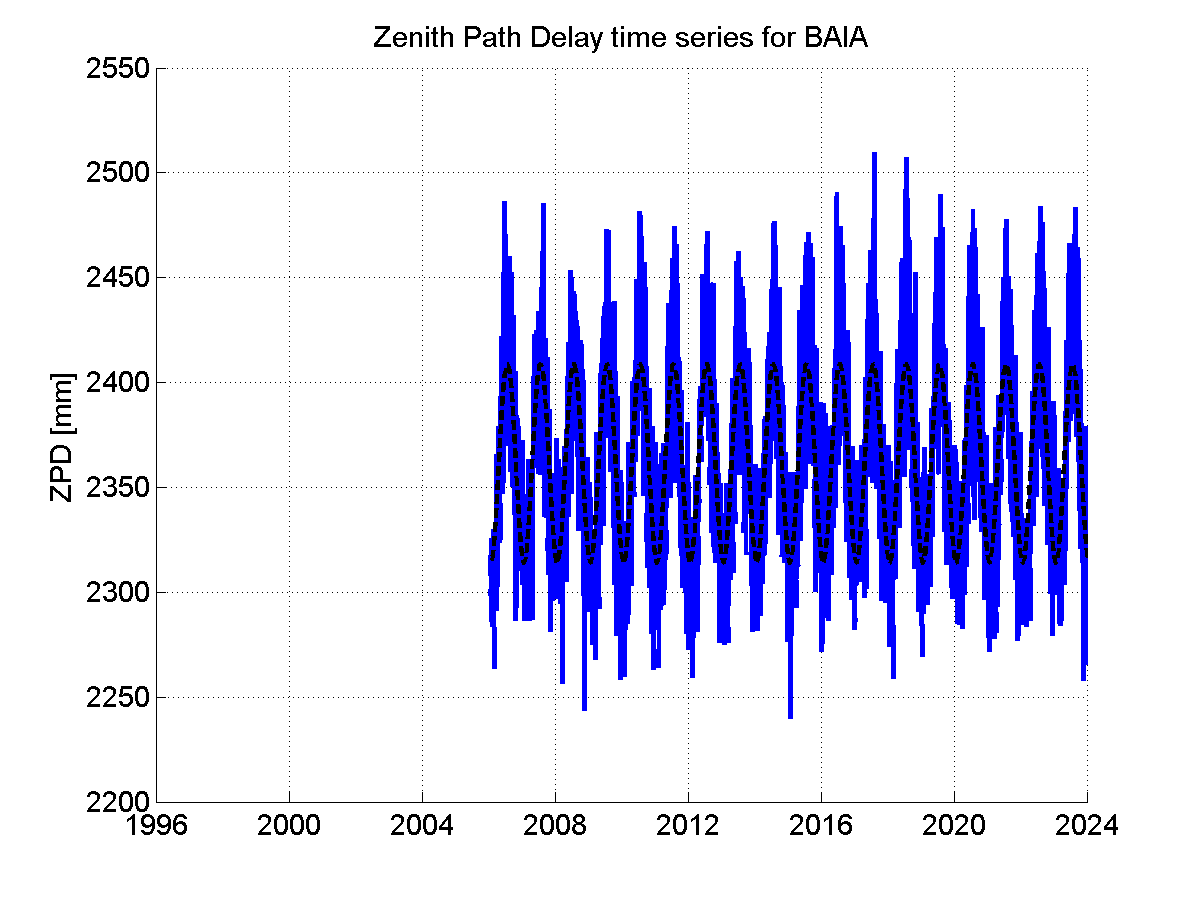

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

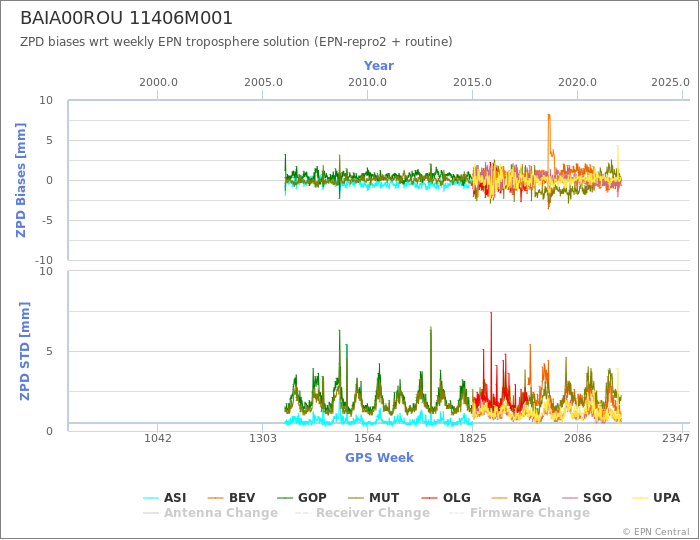

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

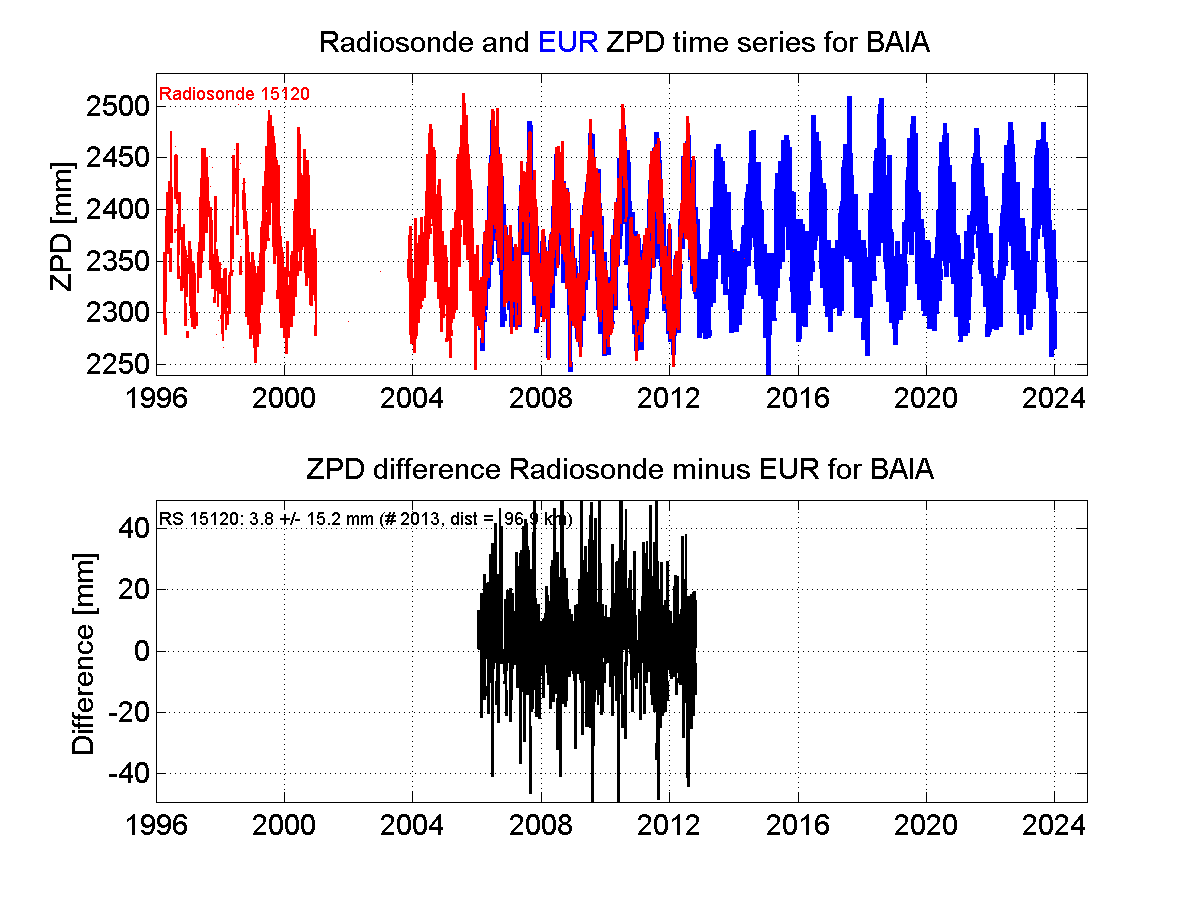

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Baia Mare, Romania (BAIA00ROU)
