Zelenchukskaya, Russian Federation (the) (ZECK00RUS)

RINEX V2.11 - GPS+GLO+GAL
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 291/2021 75%
BEV 297/2021 96.43%
BKGI 297/2021 96.43%
RINEX V3.04 - GPS+GLO+GAL
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 291/2021 75%
BEV 297/2021 96.43%
BKGI 297/2021 96.43%
Hourly
Data centres Online Last data Availability Latency
BEV 298/2021 (M) 100% 100%
BKGI 298/2021 (M) 100% 100%
Hourly
Data centres Online Last data Availability Latency
BEV 298/2021 (M) 100% 0%
BKGI 298/2021 (M) 100% 0%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF has classified ZECK00RUS as a class A station
Last ETRF2000 position valid from 231/2011 to 156/2021
expressed at epoch 001/2010
X = 3451175.119 m Vx = 0.0006 m/y
Y = 3060335.251 m Vy = -0.0005 m/y
Z = 4391955.483 m Vz = 0.0006 m/y

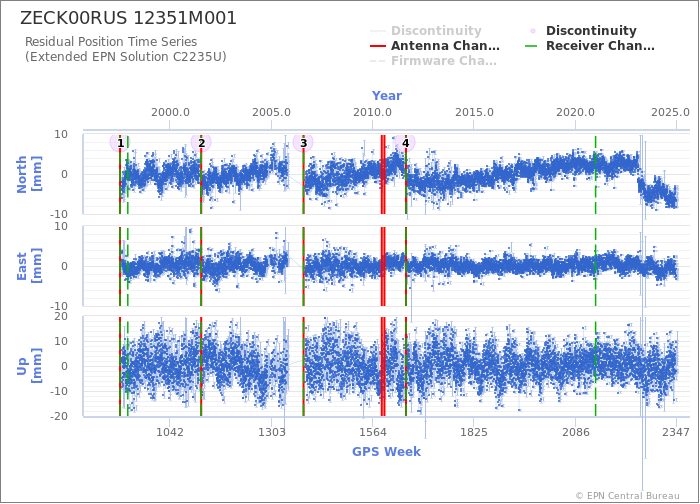

Position time series

Position time series

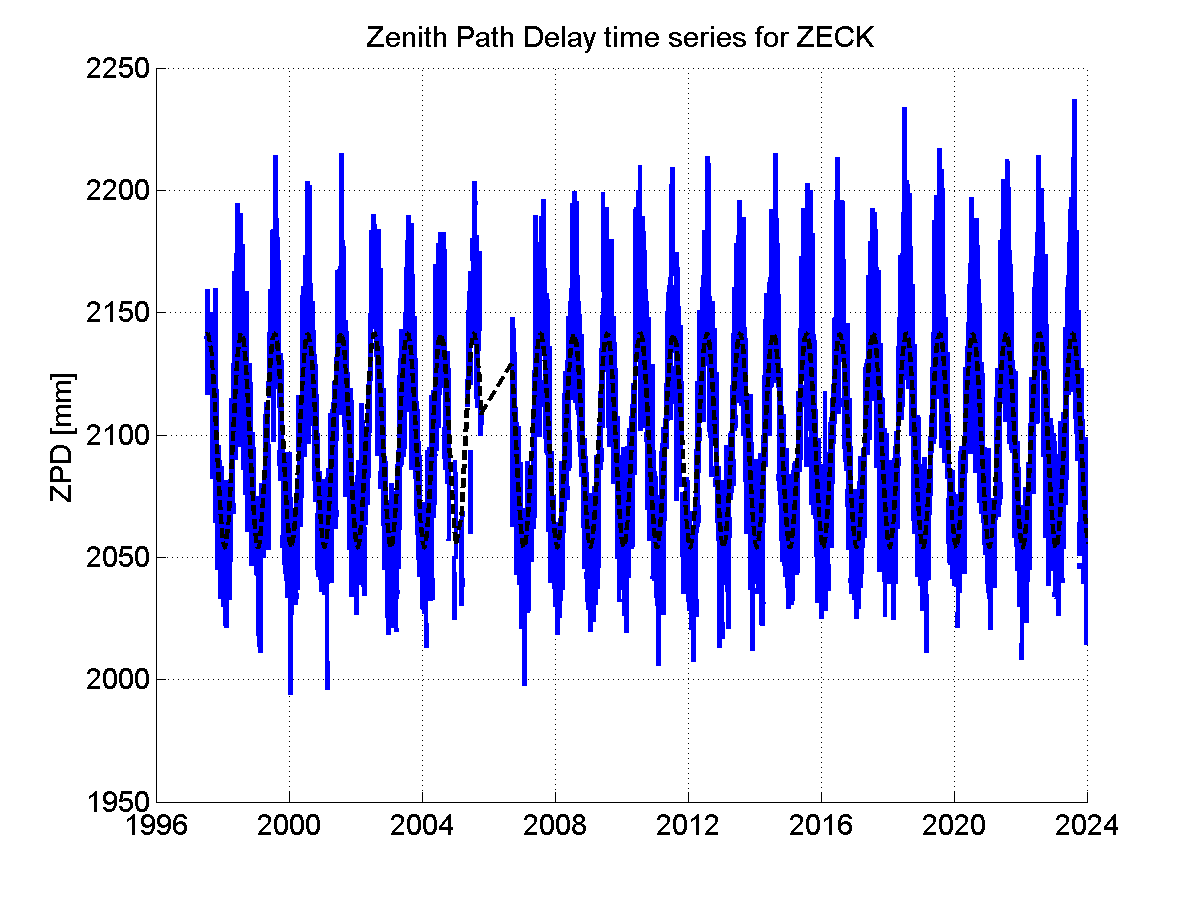

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

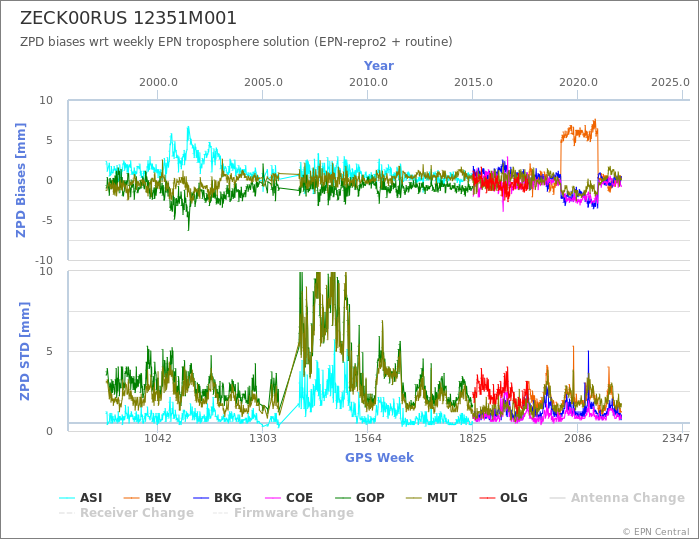

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
