EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	RESIF (Réseau sismologique et géodésique francais, CNRS)
RESPONSIBLE FOR METADATA	OSUG (Observatoire des Sciences de l'Univers de Grenoble)
CURRENT STATION CONFIGURATION	sjdv00fra_20220603.log
STATUS IN EPN	included since 19-07-1998
LAST AVAILABLE DATA	30-05-2022 (inactive station)
LAST RECEIVER	TRIMBLE NETR9 (08-02-2022 to 31-05-2022)
SET TO TRACK	GPS+GLO+GAL+SBAS
LAST ANTENNA	TRM57971.00/TZGD (30-03-2017 to 31-05-2022)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, IGN, MUT, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

No recent data available

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

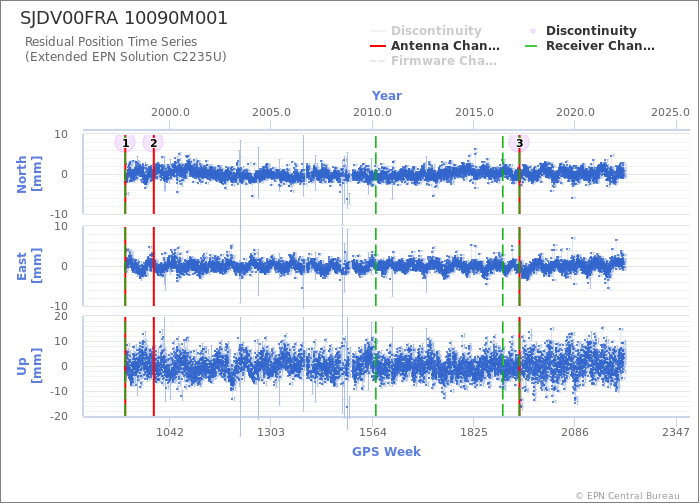

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station SJDV00FRA
Last ETRF2000 position valid from 092/2017 to 150/2022 expressed at epoch 001/2010
X = 4433470.104 m	Vx = -0.0006 m/y
Y = 362672.574 m	Vy = -0.0003 m/y
Z = 4556211.482 m	Vz = -0.0008 m/y
