Vila do Porto, Portugal (RAEG00PRT)

RESPONSIBLE FOR METADATA IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE AGENCY IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION raeg00prt_20220907.log
STATUS IN EPN included since 28-05-2017
LAST AVAILABLE DATA 29-09-2022
LAST RECEIVER LEICA GR50 (21-03-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR20 NONE (15-05-2015 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, IGE
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 335/2020 N/A
BEV 001/2020 N/A
BKGI 335/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 266/2022 78.57%
BEV 272/2022 100%
BKGI 272/2022 100%
Hourly
Data centres Online Last data Availability Latency
BEV 336/2020 (X) N/A 0%
BKGI 336/2020 (X) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 273/2022 (S) 100% 98.21%
BKGI 273/2022 (S) 100% 97.02%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

RAEG00PRT0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2022/09/29 23:19 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2022/09/29 23:19 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.52.518) wrt site log (4.52/7.711)

    2022/09/29 23:19 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 6.2773 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2022/09/29 21:34 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.52.518) wrt site log (4.52/7.711)

    2022/09/29 21:34 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 6.2773 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2022/09/30 02:39 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.52.518) wrt site log (4.52/7.711)

    2022/09/30 02:39 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 6.2773 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station RAEG00PRT
Last ETRF2000 position valid from 148/2017 to 106/2022
expressed at epoch 001/2010
X = 4618483.840 m Vx = -0.0030 m/y
Y = -2166048.467 m Vy = -0.0038 m/y
Z = 3816305.300 m Vz = -0.0020 m/y

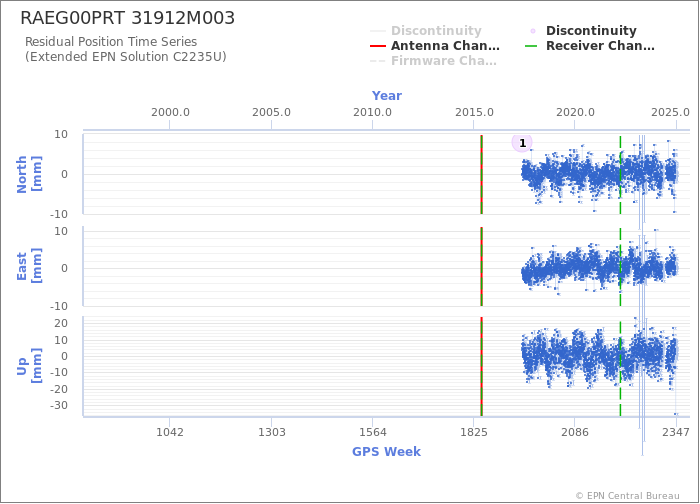

Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
