EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	ptbb00deu_20220905.log
STATUS IN EPN	included since 23-04-2000
LAST AVAILABLE DATA	17-04-2024
LAST RECEIVER	SEPT POLARX5TR (02-02-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (26-03-2019 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 726333) from 2019-03-26 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2015-08-18) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, E01, E05, E07, E08, E06, C01, C06, C07, J01, J02, J05, J06, S01, S05, date: 2015-10-13)
DATA ROUTINELY ANALYSED BY	BKG, COD, GFZ, LPT, NKG
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-01-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

PTBB00DEU0 :

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/18 22:14 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 22:14 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0590 m) wrt site log (0.21797 m)
2024/04/18 22:14 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7441 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/04/18 03:17 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 03:17 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0590 m) wrt site log (0.21797 m)
2024/04/18 03:17 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7441 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

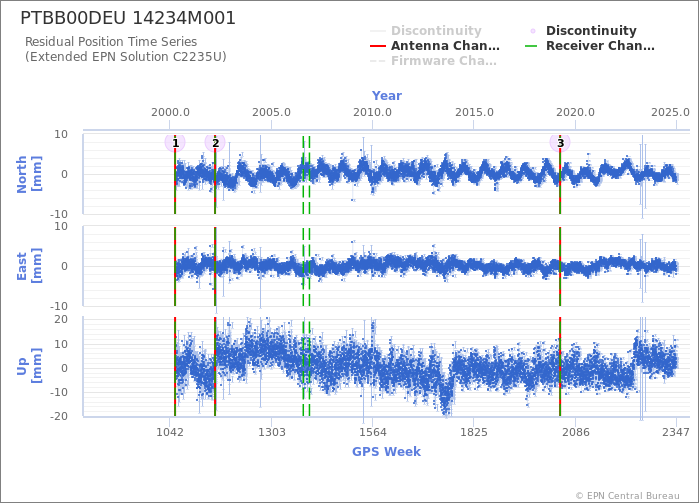

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station PTBB00DEU
Last ETRF2000 position valid from 086/2019 to 316/2022 expressed at epoch 001/2010
X = 3844060.243 m	Vx = -0.0004 m/y
Y = 709661.097 m	Vy = -0.0002 m/y
Z = 5023129.344 m	Vz = -0.0005 m/y
