EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	GCM (General Directorate of Mapping)
RESPONSIBLE FOR METADATA	GCM (General Directorate of Mapping)
CURRENT STATION CONFIGURATION	mers00tur_20220826.log
STATUS IN EPN	included since 17-03-2019
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	LEICA GR50 (20-09-2018 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA	LEIAR10/NONE (17-11-2016 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, BEV, BKG, GFZ
INCLUSION IN OTHER NETWORK(S)	IGS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 11-02-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station MERS00TUR
Last ETRF2000 position valid from 076/2019 to 316/2022 expressed at epoch 001/2010
X = 4239149.882 m	Vx = 0.0050 m/y
Y = 2886967.660 m	Vy = -0.0121 m/y
Z = 3778876.786 m	Vz = 0.0031 m/y

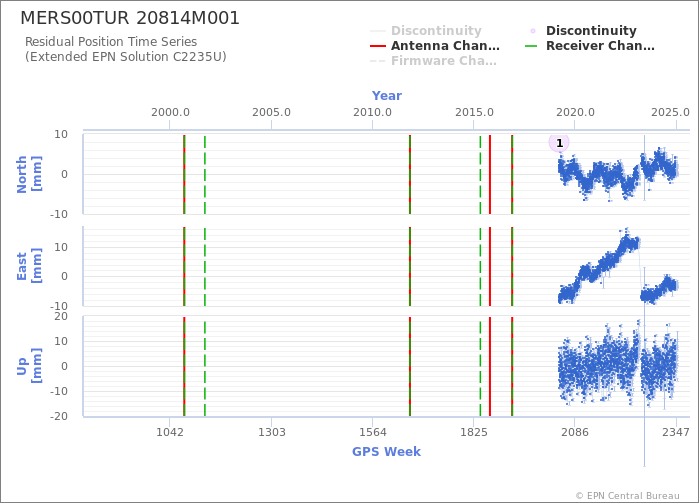

Position time series

Tropospheric Delays

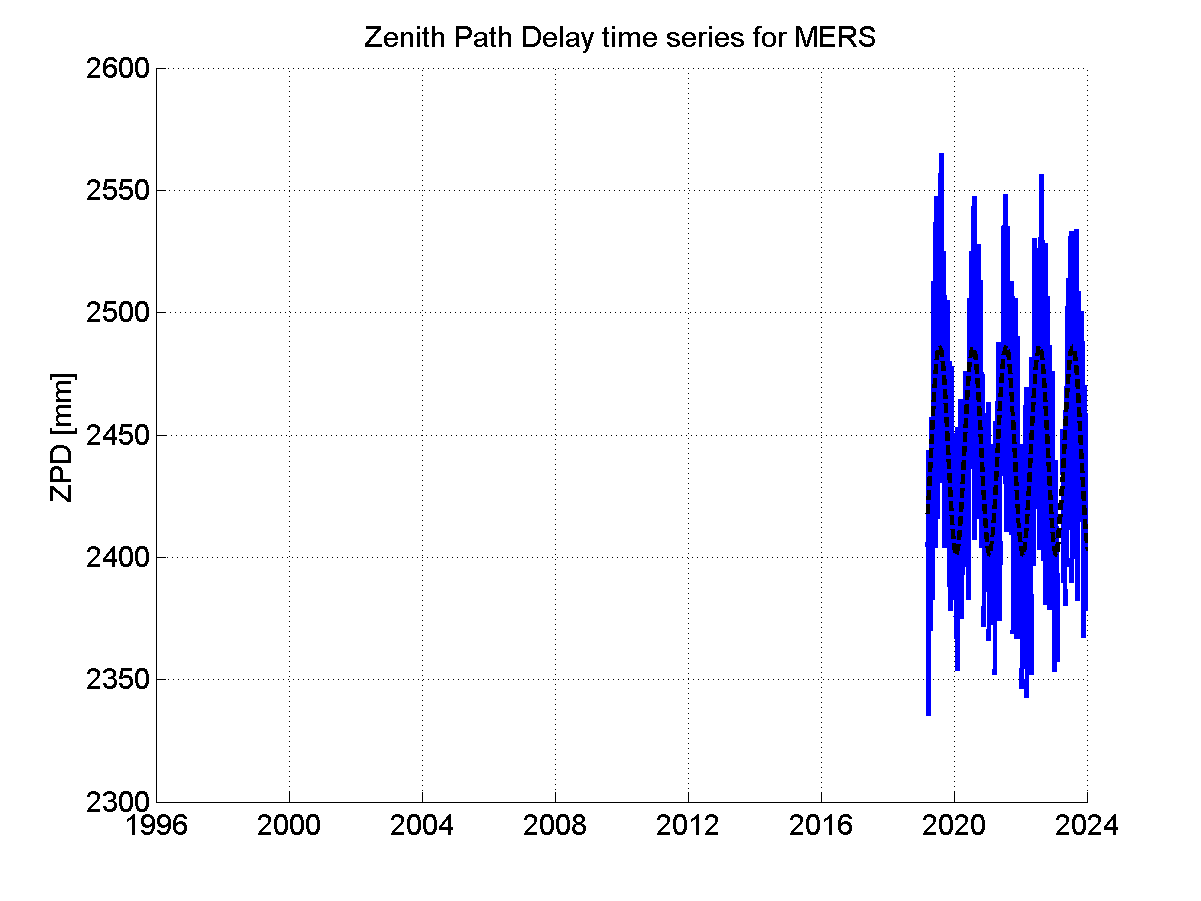

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

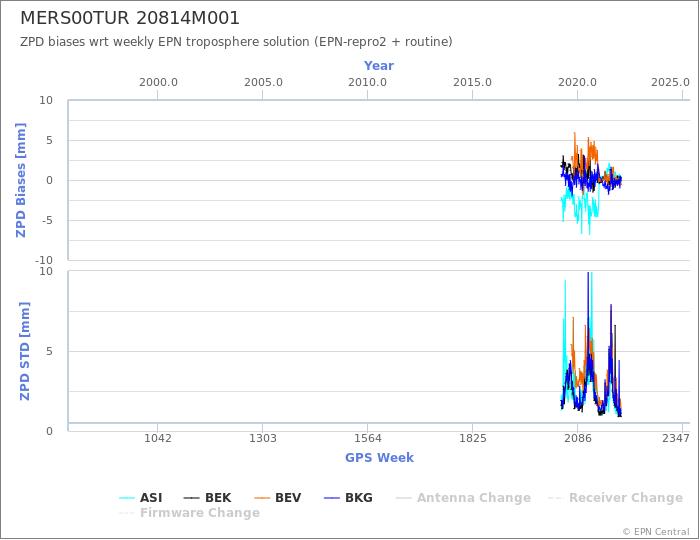

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Erdemli, Turkey (MERS00TUR)
