Lille, France (LIL200FRA)

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 291/2021 78.57%
BEV 297/2021 100%
BKGE 297/2021 100%
RINEX V3.02 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 291/2021 78.57%
BEV 297/2021 100%
BKGE 297/2021 100%
Hourly
Data centres Online Last data Availability Latency
BEV 298/2021 (L) 100% 100%
BKGE 298/2021 (L) 100% 100%
Hourly
Data centres Online Last data Availability Latency
BEV 298/2021 (L) 100% 100%
BKGE 298/2021 (L) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF has classified LIL200FRA as a class A station
Last ETRF2000 position valid from 029/2017 to 156/2021
expressed at epoch 001/2010
X = 4049340.941 m Vx = -0.0008 m/y
Y = 221852.838 m Vy = 0.0001 m/y
Z = 4906448.723 m Vz = -0.0014 m/y

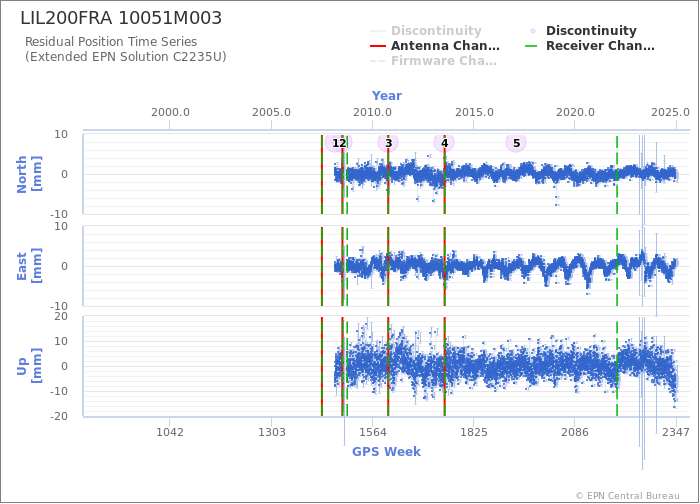

Position time series

Position time series

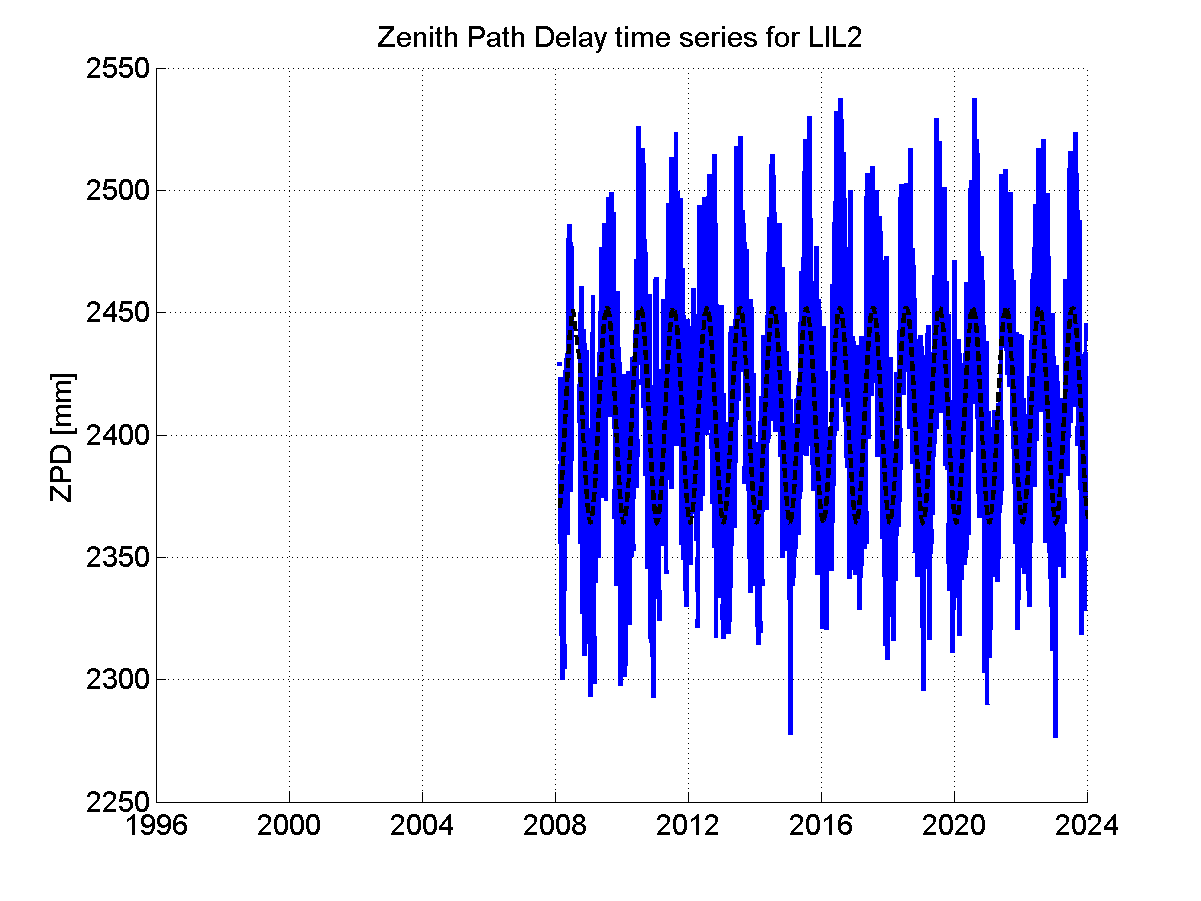

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
