EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE FOR METADATA	SDFE (Agency for Data Supply and Infrastructure)
RESPONSIBLE AGENCY	SDFE (Agency for Data Supply and Infrastructure)
CURRENT STATION CONFIGURATION	budd00dnk_20220811.log
STATUS IN EPN	included since 06-06-2021
LAST AVAILABLE DATA	29-09-2022
LAST RECEIVER	SEPT POLARX5 (05-07-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+IRNSS
LAST ANTENNA	LEIAR25.R4 LEIT (05-10-2017 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 726452) from 2017-10-05 to now : GEO - ROBOT (freq: G01,G02,R01,R02, date: 2016-11-04)
DATA ROUTINELY ANALYSED BY	BKG, NKG, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 04-11-2020.

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		309/2020	N/A

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing only positions for the station BUDD00DNK
Last ETRF2000 position valid from 157/2021 to 106/2022 expressed at epoch 094/2020
X = 3513649.633 m
Y = 778954.551 m
Z = 5248201.776 m

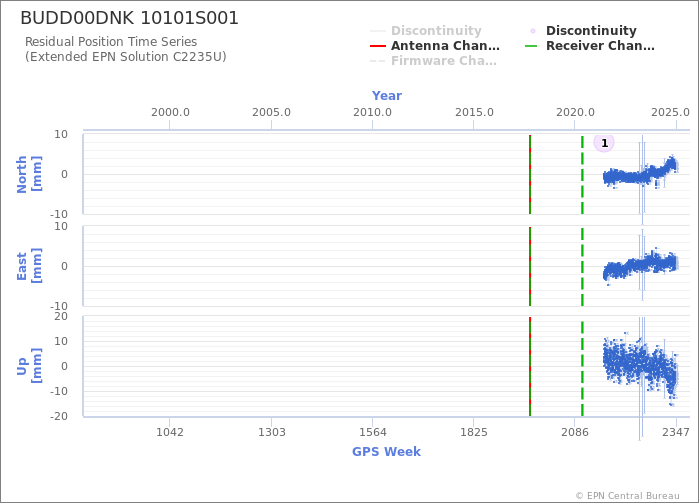

Position time series

Tropospheric Delays

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

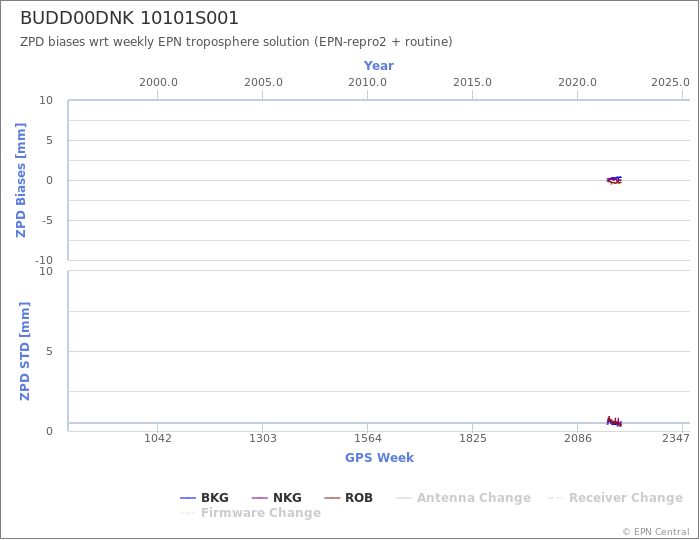

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Copenhagen, Denmark (BUDD00DNK)
