EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	tuceb (Technical University of Civil Engineering Bucharest)
RESPONSIBLE FOR METADATA	tuceb (Technical University of Civil Engineering Bucharest)
CURRENT STATION CONFIGURATION	bucu00rou_20220729.log
STATUS IN EPN	included since 21-02-1999
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	LEICA GR50 (29-07-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (06-10-2020 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 726369) from 2020-10-06 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C01, C02, C05, C06, C07, C08, I05, date: 2019-10-31) LEIAT504GG/LEIS (SN: 200456) from 2008-10-31 to 2020-10-06 : GEO - ROBOT (freq: G01, G02, date: 2008-04-15)
DATA ROUTINELY ANALYSED BY	BEV, BKG, RGA, SGO, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 06-10-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

BUCU00ROU0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/18 18:15 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 18:15 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/04/18 18:15 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.60.259) wrt site log (4.60/7.811)
2024/04/18 18:15 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0970 m) wrt site log (0.25597 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/19 16:00 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/19 16:00 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.60.259) wrt site log (4.60/7.811)
2024/04/19 16:00 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0970 m) wrt site log (0.25597 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/18 21:03 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 21:03 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.60.259) wrt site log (4.60/7.811)
2024/04/18 21:03 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0970 m) wrt site log (0.25597 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

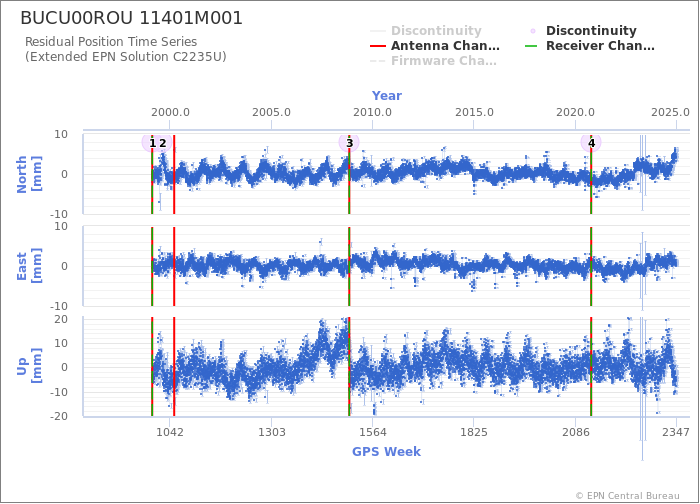

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BUCU00ROU
Last ETRF2000 position valid from 281/2020 to 316/2022 expressed at epoch 001/2010
X = 4093761.226 m	Vx = 0.0016 m/y
Y = 2007793.579 m	Vy = 0.0002 m/y
Z = 4445129.770 m	Vz = -0.0007 m/y
